6ES7331-7KF02-0AB0 Datasheet, Features, Applications, and Specifications

6ES7331-7KF02-0AB0 Overview

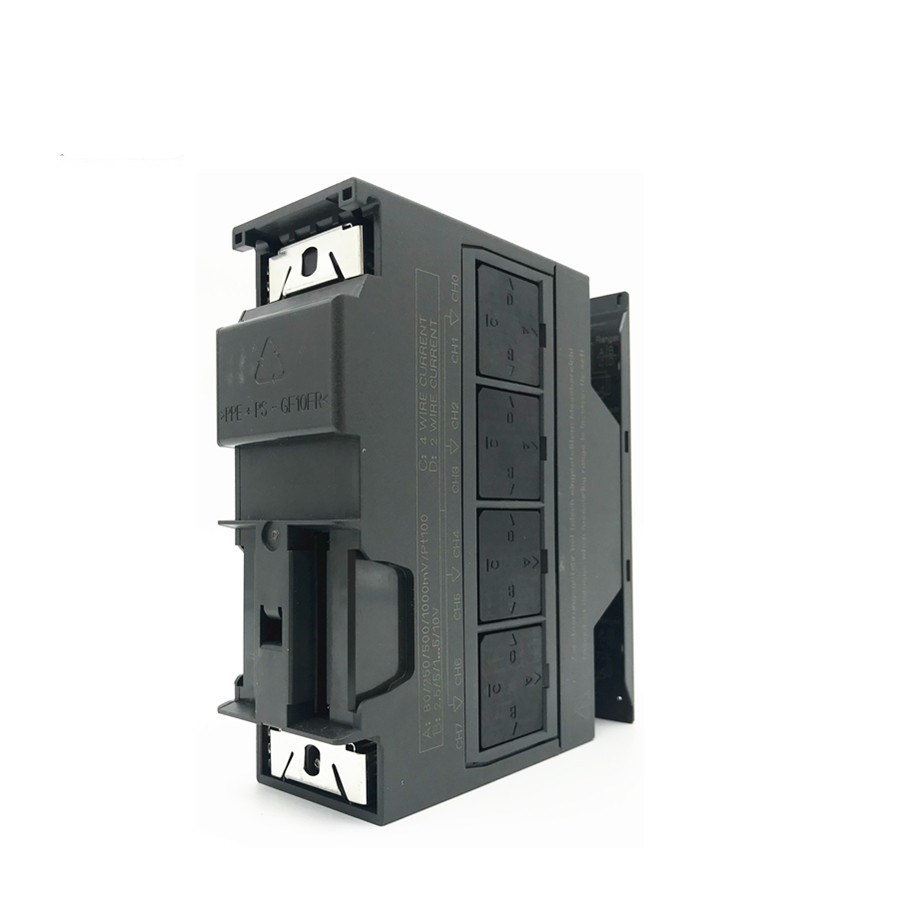

The 6ES7331-7KF02-0AB0 is an analog input module from Siemens SIMATIC S7-300 series. Designed as part of the SM 331 family, the 6ES7331-7KF02-0AB0 provides 8 analog input channels, each capable of handling multiple signal types including voltage, current, resistance, thermocouple, and resistance thermometers (RTD). With resolutions configurable at 9, 12, or 14 bits, the 6ES7331-7KF02-0AB0 is a versatile choice for engineers requiring high-accuracy measurements.

The 6ES7331-7KF02-0AB0 includes diagnostic and alarm functions, reverse polarity protection, and galvanic isolation between the input channels and the backplane bus. This ensures system safety, reliability, and long-term operation even in demanding industrial environments. Siemens specifies that the 6ES7331-7KF02-0AB0 is particularly suited for process control, automation systems, and instrumentation where multiple analog signals must be monitored with consistency and precision.

6ES7331-7KF02-0AB0 Key Features

• 8 analog input channels, isolated and configurable for voltage, current, resistance, RTD, and thermocouple signals.

• High resolution: selectable 9, 12, or 14 bits depending on application requirements.

• Input ranges supported: ±80 mV, ±250 mV, ±500 mV, ±1 V, ±2.5 V, ±5 V, ±10 V for voltage; 0–20 mA, 4–20 mA, ±10 mA, ±20 mA, ±3.2 mA for current.

• Thermocouple support: Types E, J, K, L, N.

• RTD support: Pt100 and Ni100 sensors (standard climatic ranges).

• Electrical isolation between inputs and backplane bus / load voltage.

• Power supply: 24 V DC (Load voltage L+) with reverse polarity protection.

• Low power loss: typical 1 W.

• Diagnostics and alarms: configurable diagnostic alarm and limit value alarm.

• Rugged design: permissible continuous input voltage up to 20 V, short-term tolerance up to 75 V (1 second, duty ratio 1:20).

• Compact size: width 40 mm × height 125 mm × depth 117 mm, with weight approximately 250 g.

• Front connector: 20-pin interface, designed for easy installation and removal with the active backplane bus.

Typical Applications of 6ES7331-7KF02-0AB0

The 6ES7331-7KF02-0AB0 can be integrated in a wide range of industrial systems:

• Process automation where multiple analog signals (temperature, pressure, voltage, current) must be recorded.

• Temperature monitoring using thermocouples (E, J, K, L, N) or RTD sensors like Pt100 and Ni100.

• Energy management and monitoring systems requiring stable analog input performance.

• Factory automation for instrumentation and control loops.

• Laboratory equipment and test benches needing high-resolution measurement of electrical signals.

• Safety-critical environments where diagnostic alarms and fault detection are required.

Technical Specifications of 6ES7331-7KF02-0AB0

Package and Dimensions of 6ES7331-7KF02-0AB0

The 6ES7331-7KF02-0AB0 is designed in a slim, compact form factor. The width is 40 mm, height 125 mm, and depth 117 mm, making it suitable for standard S7-300 racks. The module weighs about 250 g and connects via a required 20-pin front connector. Removal and insertion are supported through the active backplane bus, ensuring flexible installation.

Advantages and Disadvantages of 6ES7331-7KF02-0AB0

Advantages:

• Wide variety of input types supported.

• High resolution with selectable bit depth.

• Integrated diagnostic and alarm functions.

• Low power loss and reverse polarity protection.

• Robust isolation for safer system design.

Disadvantages / Considerations:

• Cable length limitations (especially in low-voltage or thermocouple modes).

• Module lifecycle note: Siemens lists the 6ES7331-7KF02-0AB0 as phased-out since October 2023.

• Requires careful configuration of diagnostic interrupts and measurement ranges for optimal accuracy.

Common Issues and Solutions for 6ES7331-7KF02-0AB0

• Noise in low-voltage or thermocouple inputs → Use shielded cables, keep lengths under 50 m, and enable interference suppression settings.

• Broken wire or current loop failure → Enable diagnostic alarms and wire-break monitoring on the 6ES7331-7KF02-0AB0.

• Backplane bus instability → Ensure stable 5 V supply and proper insertion sequence when adding or removing the module.

• Accuracy drift at extreme conditions → Use short cables, configure integration times, and maintain environmental conditions within specified ranges.

Equivalent and Cross-Reference Models to 6ES7331-7KF02-0AB0

There are no explicitly listed third-party equivalent replacements for the 6ES7331-7KF02-0AB0. However:

• The model 6ES7-331-7KF02-0AB0 is a direct reference identifier used in many distributor catalogs; it represents the same module under a slightly different ordering code.

• Within Siemens’ SIMATIC S7-300 series, other SM 331 modules may share similar functionality, but strict parameter comparison is required before substitution.

Conclusion

The 6ES7331-7KF02-0AB0 is a versatile Siemens SM 331 analog input module with 8 channels, supporting multiple input types and offering configurable resolution up to 14 bits. Its diagnostic features, isolation, and flexible measurement ranges make it a reliable choice for industrial automation. Although the 6ES7331-7KF02-0AB0 is now in phase-out, it remains widely referenced in existing systems, and engineers still seek it for spare parts and maintenance.

For new projects, Siemens recommends reviewing available current SM 331 modules with comparable specifications. Always verify compatibility when considering substitutes.
