SKKT430/16E Thyristor/Diode Module – Datasheet, Features, and Volume

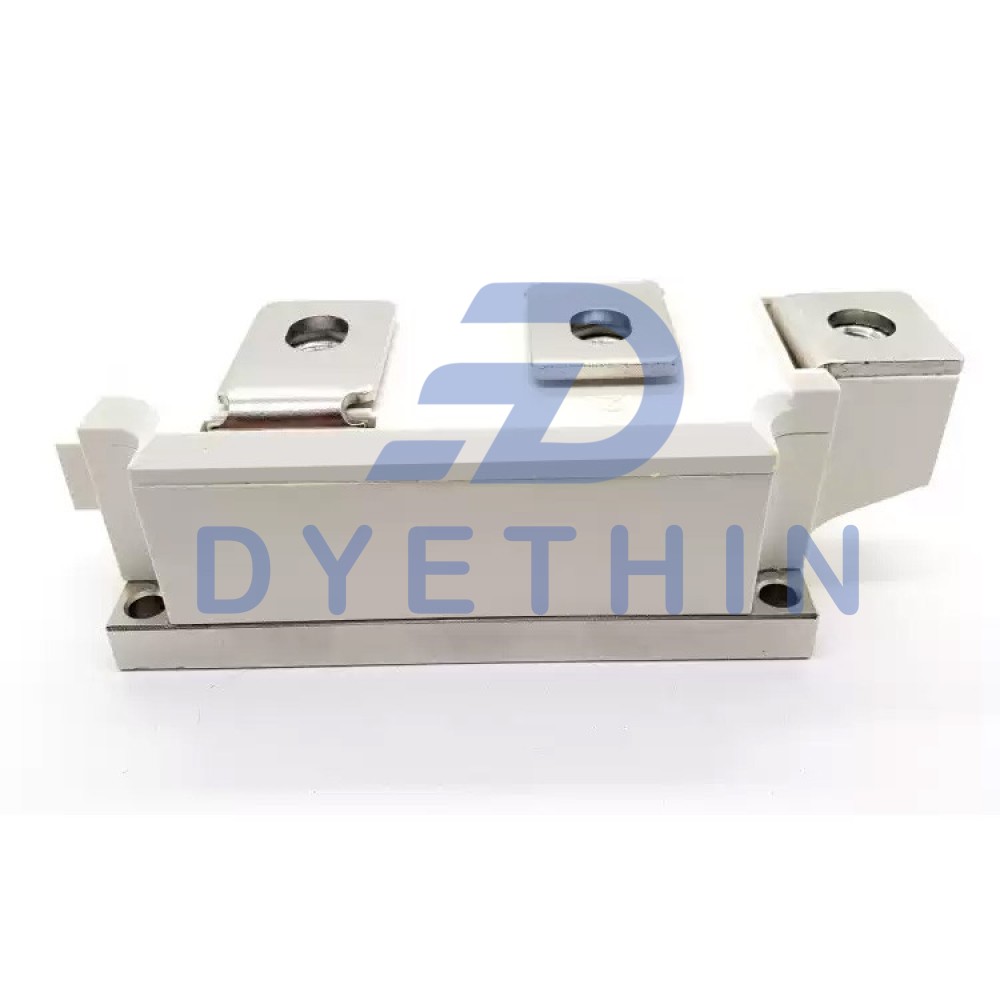

SKKT430/16E Overview

The SKKT430/16E is a thyristor/diode module manufactured by SEMIKRON. It belongs to the SEMIPACK® 5 housing family, designed for integration into high-power rectification and controlled switching systems. This module combines a thyristor and a diode in a compact, isolated-base package, ensuring reliable operation in industrial converters, rectifiers, and drives.

The datasheet highlights performance through characteristic curves rather than fixed numerical tables, reflecting how the module behaves under current, temperature, and switching conditions.

SKKT430/16E Key Features

• Part of the SEMIPACK® 5 module family.

• Combines thyristor and diode functionality in one module.

• Isolated baseplate construction for easier mounting and improved thermal transfer.

• Characteristic curves provided for:

• Power dissipation per thyristor vs. current and case temperature.

• Power dissipation per module in single/two/three module arrangements.

• Thermal impedance.

• Surge overload current.

• Gate trigger characteristics.

• Complete mechanical dimension drawing with all measurements in millimeters.

Applications of SKKT430/16E

The SKKT430/16E is suitable for demanding industrial applications where robust thyristor/diode combinations are required:

• Industrial rectifiers for AC/DC conversion.

• Controlled power supplies for automation equipment.

• Drive systems requiring thyristor modules in SEMIPACK® housings.

• General-purpose converters where high reliability and thermal stability are critical.

Technical Characteristics of SKKT430/16E

The datasheet provides graphical characteristics that define the module’s performance:

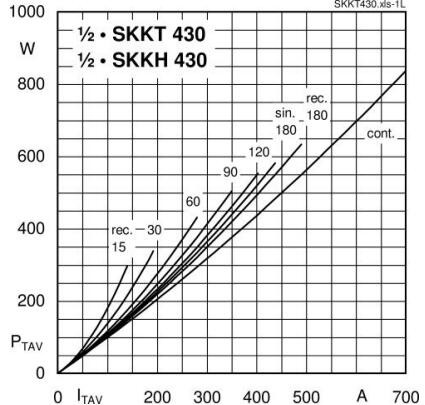

• Power Dissipation per Thyristor :






Above shows dissipation as a function of ambient/case temperature.

Above shows dissipation as a function of on-state current.

• Power Dissipation per Module:

Includes curves for one, two, and three parallel modules, showing how power dissipation scales with load conditions.

• Thermal Impedance :

Transient thermal impedance curve defines the thermal response of the module over time, guiding engineers in designing heatsink and cooling systems.

• On-State Characteristics:

Shows the forward on-state voltage as a function of current, illustrating conduction behavior.

• Surge Overload Current:

Curve illustrates permissible overload current versus time, essential for designing protection against short-duration surges.

• Gate Trigger Characteristics:

Defines the relationship between gate trigger current, gate trigger voltage, and junction temperature, guiding gate drive circuit design.

Thermal and Power Dissipation Behavior of SKKT430/16E

The SKKT430/16E datasheet emphasizes thermal management:

• Power Dissipation per Thyristor: Engineers can determine how much heat a single thyristor generates under different current levels and case temperatures.

• Power Dissipation per Module: Provides practical insights when using multiple modules in parallel, highlighting how heat dissipation scales.

• Transient Thermal Impedance: Shows how the junction temperature reacts to power pulses of varying duration. This is critical for short-term overload protection.

Proper heatsinking and thermal design are mandatory for maximizing module lifetime.

Gate Trigger and Switching Characteristics of SKKT430/16E

• Gate Trigger Characteristics:
  Displays the gate current and voltage requirements across different junction temperatures.

• Engineers must design gate drive circuits to meet these trigger parameters to ensure consistent and reliable thyristor turn-on.

• Gate trigger sensitivity is strongly temperature dependent.

Surge Overload Current of SKKT430/16E

• Surge Overload Current vs. Time:
  Illustrates the maximum non-repetitive overload current the module can withstand for durations ranging from milliseconds to seconds.

• This curve is critical for:

• Short-circuit protection design.

• Defining fusing requirements.

• Ensuring system robustness during inrush current events.

Package and Mechanical Dimensions of SKKT430/16E

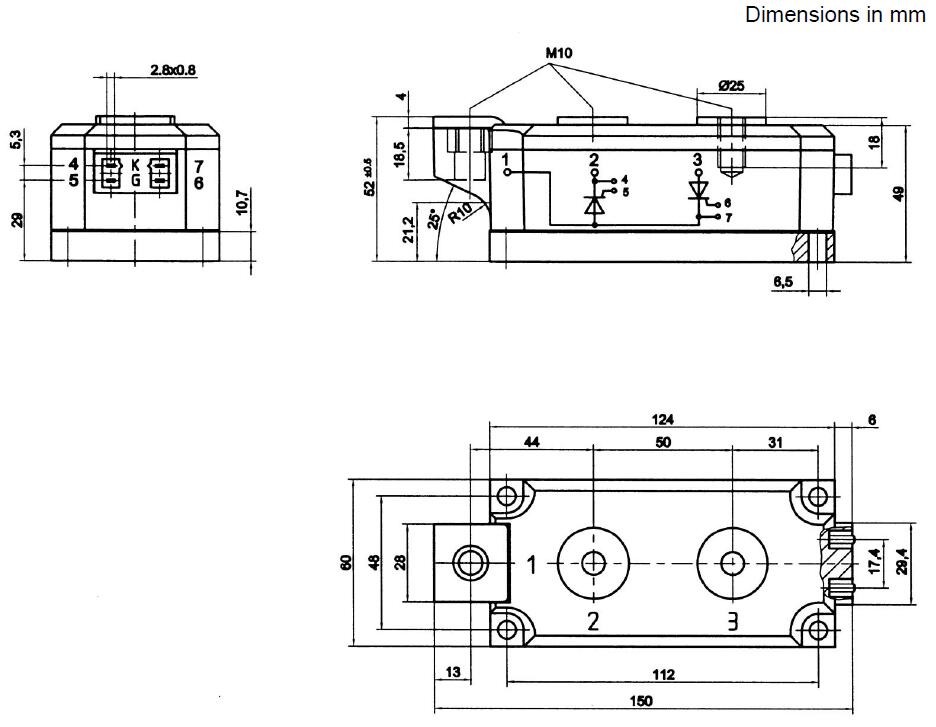

The datasheet provides a detailed mechanical drawing of the SEMIPACK® 5 housing:

• Outline drawing includes length, width, height, and mounting hole positions (all in millimeters).

Length: 150 mm

Width: 60 mm

Height: 52 mm (including baseplate and casing)

• The baseplate is isolated, simplifying integration with heatsinks and enhancing electrical safety.

• Mounting guidelines (such as recommended screw placement) are implicit in the mechanical drawing.

Advantages and Disadvantages of SKKT430/16E

Issues and Solutions for SKKT430/16E

• Thermal Stress
  Issue: Excessive junction temperature rise during high current.
  Solution: Use the power dissipation curve per thyristor together with the transient thermal impedance curve to calculate safe operating limits and select an appropriate heatsink.

• Surge Overload
  Issue: High inrush currents in rectifier systems.
  Solution: Refer to the surge overload current curve to design protection devices that keep short-duration surges within safe limits.

• Triggering Variability
  Issue: Gate triggering shifts with junction temperature.
  Solution: Follow the gate trigger characteristic curve to calibrate gate drive current and voltage across the expected operating temperature range.

• Mounting Errors
  Issue: Improper mounting may cause uneven thermal contact.
  Solution: Follow the mechanical dimension drawing of the SEMIPACK® 5 housing for correct screw torque and flatness requirements.

Conclusion

The SKKT430/16E is a SEMIKRON SEMIPACK® 5 thyristor/diode module optimized for rectifiers and controlled converters. The datasheet provides critical curves and mechanical drawings rather than fixed ratings, guiding engineers to design systems that respect thermal, electrical, and gate trigger boundaries. By following the provided graphs and mechanical outline, system designers can ensure safe integration, efficient thermal management, and reliable long-term performance.
