MCP1700 Low Dropout Regulator: Features, Applications, and Comparison

The MCP1700 low dropout regulator is a highly efficient low-power LDO regulator designed by Microchip Technology. It excels in providing stable voltage regulation for modern electronic devices, especially those requiring low power consumption and reliable performance. With its low quiescent current and robust design, the MCP1700 is a trusted choice for applications in IoT devices, portable electronics, and battery-powered systems.

MCP1700 Features

The MCP1700 features and specifications make it an ideal solution for voltage regulation. Here are its key highlights:

• Low Dropout Characteristics: The MCP1700 efficiently operates with a minimal input-to-output voltage difference.

• Output Voltage: Fixed output options, such as 1.8V, 3.3V, and 5.0V, cater to various applications.

• Low Quiescent Current: Consuming as low as 1.6 µA, it is perfect for energy-saving designs.

• Maximum Input Voltage: Supports up to 16V, offering flexibility in power sources.

• Temperature Range: Reliable operation from -40°C to +125°C.

• Output Current Capability: Provides up to 250 mA of current for powering various devices.

• Input and Output Capacitor Requirements: Stable performance with recommended capacitors for noise suppression.

MCP1700 Pin Configuration

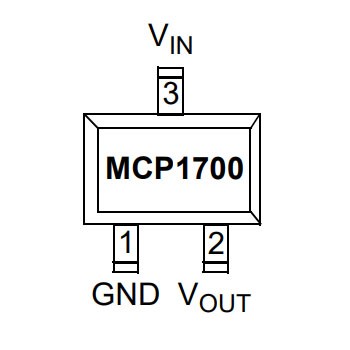

SOT-23 Package

Representative Product Model: MCP1700T-3302E/TT

SOT-89 Package

Representative Product Model: MCP1700T-3302E/MB

TO-92 Package

Representative Product Model: MCP1700-3302E/TO

DFN-6 Package

Representative Product Model: MCP1700T-3302E/MAY

MCP1700 Applications

The applications of MCP1700 span multiple industries, owing to its efficiency and reliability:

1. IoT Devices

The MCP1700 is widely used in IoT systems, providing efficient power for wireless sensor networks and connected devices.

2. Portable Electronics

Its low-power consumption extends battery life, making it ideal for wearables, medical devices, and other portable gadgets.

3. Industrial Automation

The MCP1700 supports reliable voltage regulation for power designs in industrial automation systems, ensuring robust operation in harsh environments.

4. Microcontroller-Based Circuits

Voltage regulation for microcontrollers is critical, and the MCP1700 provides stable and precise output, enabling consistent performance.

MCP1700 Manufacturer

The MCP1700 is manufactured by Microchip Technology, a leading name in the semiconductor industry. Microchip specializes in producing high-quality, reliable voltage regulator ICs and other electronic components. Their expertise ensures that the MCP1700 meets stringent performance and reliability standards.

MCP1700 Datasheet

For detailed specifications and design guidelines, the MCP1700 datasheet is an essential resource. It includes information on pin configuration, electrical characteristics, and recommended design practices. You can download the datasheet directly from Microchip’s official website.

The MCP1700 datasheet also contains the following key figures

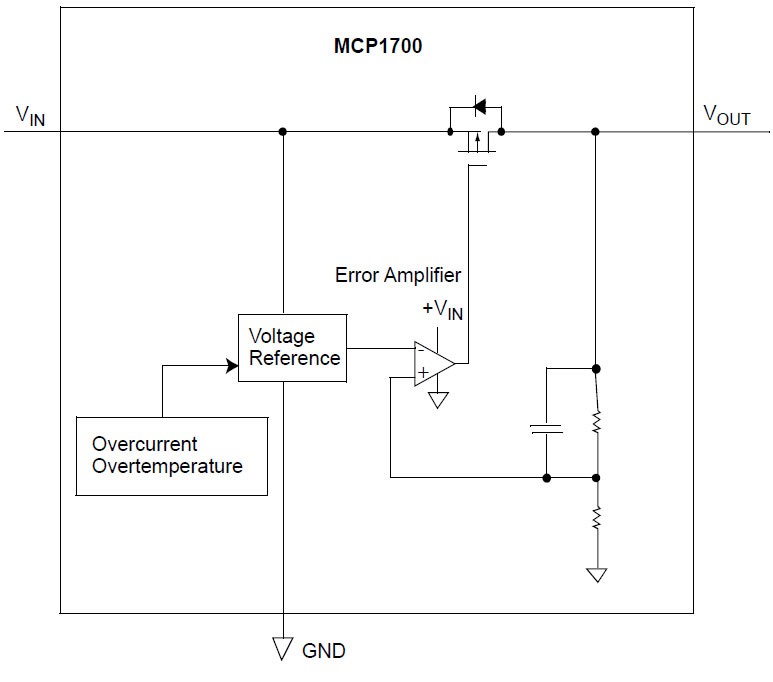

Functional Block Diagrams

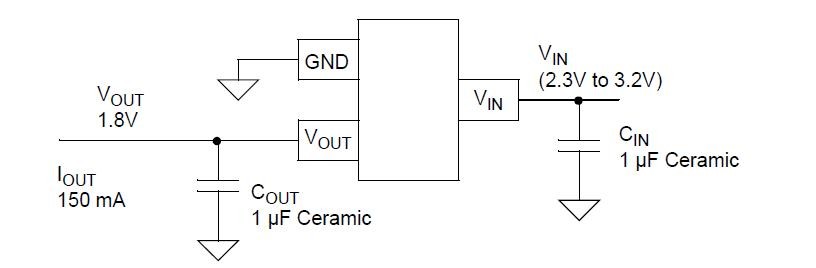

Typical Application Circuits

Comparison Between MCP1700 and Other LDOs

MCP1700 (Microchip)

• Best For: Low-power applications like IoT devices, wearables, and sensors due to its ultra-low quiescent current (1.6 µA).

• Drawback: Limited maximum output current compared to others, capping at 250 mA.

LD1117 (STMicroelectronics)

• Best For: Applications requiring higher current (up to 800 mA) but can tolerate higher quiescent current and dropout voltage.

• Drawback: Higher power dissipation due to higher dropout voltage.

LP2985 (Texas Instruments)

• Best For: Applications with slightly higher quiescent current tolerances but needing tight output regulation and low noise.

• Drawback: Lower maximum output current of 150 mA.

TLV767 (Texas Instruments)

• Best For: Designs requiring wide input voltage range and up to 1 A of output current, making it ideal for more demanding power management systems.

• Drawback: Slightly higher quiescent current than MCP1700.

MIC5205 (Microchip)

• Best For: Low-noise designs and battery-powered applications requiring low dropout and decent current capacity.

• Drawback: Higher quiescent current than MCP1700.

Popular MCP1700 Products

MCP1700 Series Product Table

MCP1700 Part Numbers and Codes

Conclusion

The MCP1700 low-power LDO regulator is a versatile and efficient solution for voltage regulation in modern electronic systems. Its low dropout characteristics, compact design, and energy efficiency make it an excellent choice for IoT devices, portable electronics, and industrial automation. With its reliable performance and broad application scope, the MCP1700 continues to be a top pick for engineers worldwide. Whether you’re designing battery-powered systems or efficient power management solutions, the MCP1700 is a dependable companion.
