744235900

Name: 744235900
Brand: Wurth Electronics Inc.
SKU: 744235900
Availability: InStock

Get $29 off orders over $999.

For orders over $2,999, get $160 off.

For orders over $6999, you will receive a $290 discount.

Manufacturer No:: 744235900

Manufacturer:: Wurth Electronics Inc.

Product Category:: Common Mode Chokes

Description:: CMC 300NH 2A 2LN 90 OHM SMD

RoHs Status:: Lead Free / RoHS Compliant

Datasheet:: 744235900 Datasheet(PDF)

Get a quick quote? Send the BOM to [email protected]

Cut cost with low MOQ • Small orders shipped fast

Delivery Option:

Pay With Ease:

Inventory Quantity: 9,211

MOQ: 1

Submit the 744235900 inquiry form now or email us at [email protected], and we'll respond with pricing and lead time within 12 hours.

Purchase Instructions

Dyethin offers competitively priced 744235900 components, guaranteeing each component is 100% genuine and brand new, manufactured by Wurth Electronics Inc.. To obtain a quote for the 744235900, please complete the quick enquiry form on the right, specifying your required quantity and contact details. Our sales team will respond within 12 hours with pricing and delivery times.

Overview

The 744235900 is a surface-mount common mode line filter from Würth Elektronik’s WE-CNSW series. Built in a compact 1812 package, it is optimized for noise suppression in high-frequency differential and common mode signals. With a 90Ω impedance at 100 MHz and a 2 A rated current, 744235900 delivers reliable EMC performance for space-constrained applications in industrial and consumer electronics.

Key Features

Common mode impedance: 90Ω @ 100 MHz
Rated current: 2000 mA with max. 0.05Ω DCR
Operating temperature range: -40°C to +125°C
AEC-Q200 qualified (Grade 1)
RoHS and REACH compliant, halogen-free
Compact 1812 package with SMT design

Typical Impedance Characteristics

As shown above, the 744235900 demonstrates strong attenuation in both common mode and differential mode across a wide frequency range. The common mode impedance increases sharply beyond 10 MHz and peaks near 100 MHz, making it particularly effective at suppressing high-frequency EMI. The graph was measured using a Keysight E5080A network analyzer per CISPR 17 standards, ensuring accurate, application-relevant data for EMI filter design.

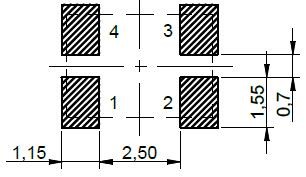

Suggested PCB Footprint Dimensions [mm]

Applications

DC power line filtering in automotive systems
High-frequency signal integrity filtering
Noise suppression in USB, Ethernet, or CAN lines
Industrial control units and PLCs
Consumer electronics with EMC requirements
