RF2317

Name: RF2317
Brand: RFMD
SKU: RF2317
Availability: InStock

Get $29 off orders over $999.

For orders over $2,999, get $160 off.

For orders over $6999, you will receive a $290 discount.

Manufacturer No:: RF2317

Manufacturer:: RFMD

Package:: CJ2BAT0

Product Category:: RF Amplifiers

Description:: High-linearity 15dB GaAs HBT RF amplifier with broadband 3GHz support.

RoHs Status:

Datasheet:: RF2317 Datasheet(PDF)

Get a quick quote? Send the BOM to [email protected]

Cut cost with low MOQ • Small orders shipped fast

Delivery Option:

Pay With Ease:

Inventory Quantity: 8,500

MOQ: 1

Submit the RF2317 inquiry form now or email us at [email protected], and we'll respond with pricing and lead time within 12 hours.

Purchase Instructions

Dyethin offers competitively priced RF2317 components, guaranteeing each component is 100% genuine and brand new, manufactured by RFMD. To obtain a quote for the RF2317, please complete the quick enquiry form on the right, specifying your required quantity and contact details. Our sales team will respond within 12 hours with pricing and delivery times.

Description

RF2317 is a high-linearity broadband amplifier optimized for cable TV and RF communication systems. It features a GaAs HBT design and delivers consistent 15dB gain across 50MHz to 1000MHz, with extended operation up to 3GHz. This compact solution integrates internal 75Ω matching on both input and output, requiring only minimal external bias components. RF2317’s robust linearity and low noise figure make it suitable for CATV distribution, upstream amplifiers, and base station front-ends.

Features

15dB typical gain across broadband spectrum
Low noise figure of 4.8dB at 75Ω
High linearity with output IP3 up to +49dBm
Operates from DC to 3GHz frequency
Internally matched input and output
Single-supply operation from 9V to 12V

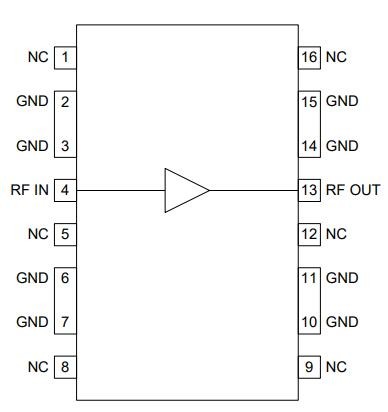

Pinout Information

RF2317 comes in a 16-pin surface mount package with multiple ground connections to ensure stability. Pin 4 serves as RF input, which is not internally DC blocked, requiring a series capacitor. Pin 13 combines RF output and bias feed, necessitating both DC blocking and a bias choke. Other pins include several GND pads (e.g., 2, 3, 6, 7, 10, 11, 14, 15) for optimal thermal and electrical grounding, while remaining pins are marked NC (no connection).

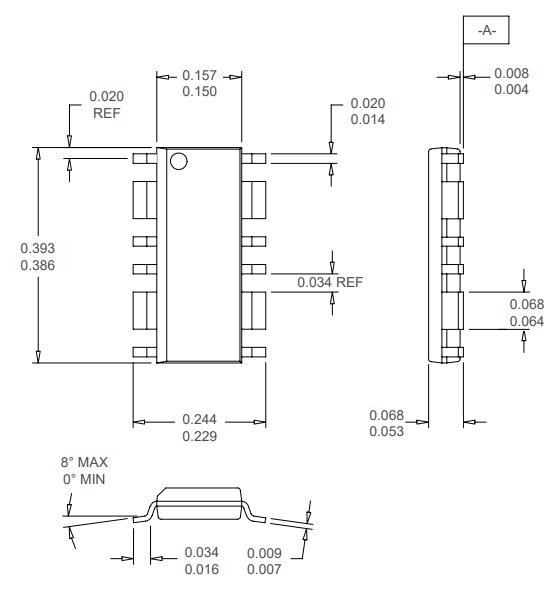

Package Style

Applications

CATV Distribution Amplifiers
Cable Modem Line Drivers
Laser Diode Drivers
Wireless Base Stations
Return Path Amplifiers
Broadband IF/RF Gain Blocks

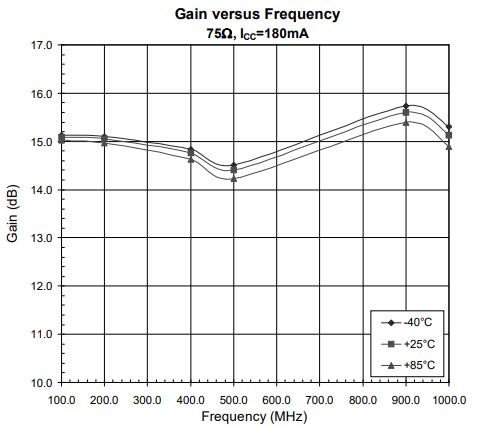

RF2317 Gain vs Frequency

The graph above demonstrates the gain performance of RF2317 across the 100MHz to 1GHz range at varying temperatures. Even at extreme conditions (–40°C to +85°C), the gain remains remarkably stable around 15dB. This illustrates the RF2317’s resilience in harsh environments and its suitability for temperature-sensitive RF systems.

Below is a reference table of express delivery prices and timeframes:

Express Name	Prices within 0.5 kg	Statute of limitations (working days)
DHL	$28.00	3-5 days
FedEx	$30.00	4-6 days
EMS	$25.00	7-15 days
UPS	$30.00	3-6 days
TNT	$29.00	4-7 days

Price Note: The price is an example within 0.5Kg, the specific cost may be adjusted according to the actual weight and destination.
Timeliness Note: Timeliness is estimated time, excluding customs clearance delays or other uncontrollable factors.
Extra Charges: Remote surcharge may be incurred in some areas, subject to the quotation of the logistics company.

1. Can I buy the RF2317 online from Dyethin site?

Yes, you can buy, purchase, or order online the RF2317 directly through our website. We offer a secure checkout for fast and easy ordering.

2. Is the RF2317 currently in stock and ready to ship?
Absolutely! The RF2317 is in stock, available now, and ready to ship. We provide same-day shipping for all orders placed before our daily cutoff time.

3. Do you offer bulk pricing or wholesale discounts on the RF2317?
Yes, we offer attractive bulk pricing, wholesale, and volume discounts on the RF2317. For larger quantity orders, request an instant quote directly from our price list.

4. Do you provide RF2317 components through trusted supply networks?
We supply RF2317 voltage regulators from RFMD through trusted global sourcing channels, ensuring consistent quality and performance.

5. Can I find technical specifications or a datasheet for the RF2317?
Certainly! The complete technical specifications and datasheet for the RF2317 are readily available and clearly listed on our product page.

6. How competitive is your pricing for the RF2317 compared to other suppliers?
Our pricing on the RF2317 is highly competitive, cost-effective, and consistently reviewed to ensure you get excellent value for your purchase.

7. Can I get fast delivery or bulk purchase discounts when buying RF2317 components?
Yes, we offer flexible fast delivery, competitive bulk pricing, and attractive discounts for larger purchase quantities. Contact us directly for your bulk purchasing requirements.

Specifications

Product Category :

RF Amplifiers

Manufacturer :

RFMD

Product type :

RF/IF and RFID

ESD Sensitivity :

Yes (handle with care)

Frequency Range :

DC to 3GHz

Impedance :

75Ω input/output

Input VSWR (75Ω) :

1.3:1

Noise Figure :

4.8 dB (100MHz–1GHz)

Operating current :

100–200 mA

Operating Temperature :

–40°C to +85°C

Operating Voltage :

8.3V to 8.9V (typical)

Output IP3 :

+49 dBm @ 100MHz

Output P1dB :

+22 dBm @ 100MHz

Output VSWR (75Ω) :

1.8:1

Package :

CJ2BAT0

Part Status :

Obsolete

Product Type :

Linear CATV RF Amplifier

Reverse Isolation :

19 dB

RoHS Compliant :

Yes

Storage Temperature :

–40°C to +150°C

Technology :

GaAs HBT

Typical Gain (75Ω) :

15 dB
