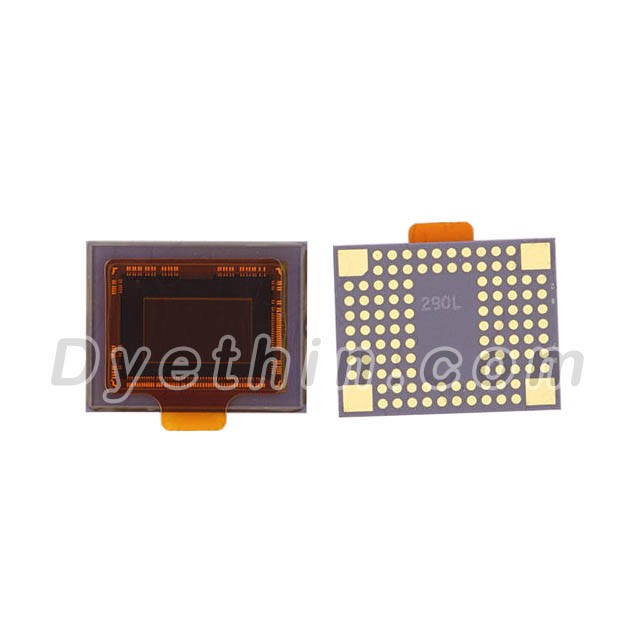

The picture as a guide only. The Specifications are based on the datasheet (PDF).

Favorites

MT9M001C12STC

Name: MT9M001C12STC
Brand: onsemi
SKU: MT9M001C12STC
Availability: InStock

Get $29 off orders over $999.

For orders over $2,999, get $160 off.

For orders over $6999, you will receive a $290 discount.

Manufacturer No:: MT9M001C12STC

Manufacturer:: onsemi

Product Category:: Image Sensors, Camera

Description:: CMOS with Processor Image Sensor 1280H x 1024V 5.2µm x 5.2µm CLCC-48 (14.22x14.22)

RoHs Status:

Datasheet:: MT9M001C12STC Datasheet(PDF)

Get a quick quote? Send the BOM to [email protected]

Cut cost with low MOQ • Small orders shipped fast

Delivery Option:

Pay With Ease:

Inventory Quantity: 8,500

MOQ: 1

Submit the MT9M001C12STC inquiry form now or email us at [email protected], and we'll respond with pricing and lead time within 12 hours.

Purchase Instructions

Dyethin offers competitively priced MT9M001C12STC components, guaranteeing each component is 100% genuine and brand new, manufactured by onsemi. To obtain a quote for the MT9M001C12STC, please complete the quick enquiry form on the right, specifying your required quantity and contact details. Our sales team will respond within 12 hours with pricing and delivery times.

The MT9M001 is a SXGA-format 1/2-inch CMOS active-pixel digital image sensor. The active imaging pixel array is 1280H x 1024V. It incorporates sophisticated camera functions on-chip such as windowing,column and row skip mode, and snapshot mode. It is programmable through a simple two-wire serial interface.

The sensor can be operated in its default mode or programmed by the user for frame size, exposure, gain setting, and other parameters. The default mode outputs a SXGA-sized image at 30 frames per second (fps).

An on-chip analog-to-digital converter (ADC) provides 10 bits per pixel. Frame- and line-valid signals are output on dedicated pins, along with a pixel clock that is synchronous with valid data.

Features

• Array Format (5:4): 1,280H x 1,024V (1,310,720 active pixels). Total (incl. dark pixels): 1,312H x 1,048V (1,374,976 pixels)

• Pixel Size and Type: 5.2µm x 5.2µm active pixel photodiode-type

• Color Filter Array: R, G, and B primary color filters

• Optical Format: 1/2 inch

• Supply Voltage: 3.0V to 3.6V, 3.3V nominal

• Frame Rate: 30 fps progressive scan; programmable

• Data Rate: 48 MHz at 48 MHz master clock

• Responsivity (green pixels): 1.8 V/lux-sec with source illumination @ 550nm

• SNRmax >45dB

• Dynamic Range: >62dB

• Shutter: Electronic rolling shutter (ERS)

• Window Size: SXGA; programmable to any smaller format (VGA, QVGA, CIF, QCIF, etc.)

• Programmable Controls: Gain, frame rate, frame size

• ADC: On-chip 10-bit

• Power Consumption: 325mW nominal at maximum data rate, 3.3V, Standby <300µW

• Package: 48-pin CLCC

• Dark Current @ 20°C 20-30 elec/sec

• Q. E. (Green): 52%

• Temporal Noise: <10e

• Saturation Voltage: 1.2V

• Pixel Capacity: 40Ke

• Conversion Gain: 32 uV/e

• ESD Tolerances: 2000V HBM, 200V MM

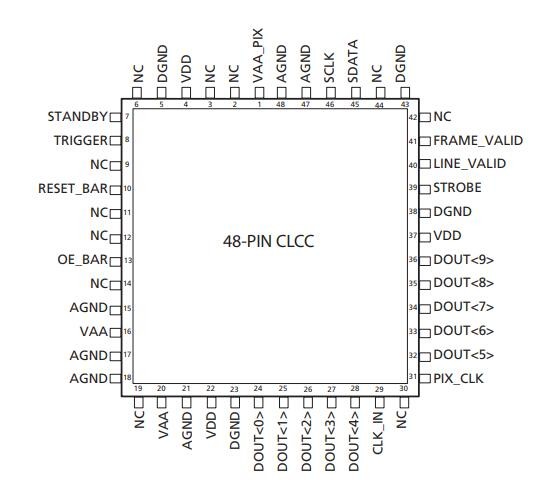

MT9M001C12STC pinout

Below is a reference table of express delivery prices and timeframes:

Express Name	Prices within 0.5 kg	Statute of limitations (working days)
DHL	$28.00	3-5 days
FedEx	$30.00	4-6 days
EMS	$25.00	7-15 days
UPS	$30.00	3-6 days
TNT	$29.00	4-7 days

Price Note: The price is an example within 0.5Kg, the specific cost may be adjusted according to the actual weight and destination.
Timeliness Note: Timeliness is estimated time, excluding customs clearance delays or other uncontrollable factors.
Extra Charges: Remote surcharge may be incurred in some areas, subject to the quotation of the logistics company.

1. Can I buy the MT9M001C12STC online from Dyethin site?

Yes, you can buy, purchase, or order online the MT9M001C12STC directly through our website. We offer a secure checkout for fast and easy ordering.

2. Is the MT9M001C12STC currently in stock and ready to ship?
Absolutely! The MT9M001C12STC is in stock, available now, and ready to ship. We provide same-day shipping for all orders placed before our daily cutoff time.

3. Do you offer bulk pricing or wholesale discounts on the MT9M001C12STC?
Yes, we offer attractive bulk pricing, wholesale, and volume discounts on the MT9M001C12STC. For larger quantity orders, request an instant quote directly from our price list.

4. Do you provide MT9M001C12STC components through trusted supply networks?
We supply MT9M001C12STC voltage regulators from onsemi through trusted global sourcing channels, ensuring consistent quality and performance.

5. Can I find technical specifications or a datasheet for the MT9M001C12STC?
Certainly! The complete technical specifications and datasheet for the MT9M001C12STC are readily available and clearly listed on our product page.

6. How competitive is your pricing for the MT9M001C12STC compared to other suppliers?
Our pricing on the MT9M001C12STC is highly competitive, cost-effective, and consistently reviewed to ensure you get excellent value for your purchase.

7. Can I get fast delivery or bulk purchase discounts when buying MT9M001C12STC components?
Yes, we offer flexible fast delivery, competitive bulk pricing, and attractive discounts for larger purchase quantities. Contact us directly for your bulk purchasing requirements.

Specifications

Product Category :

Image Sensors, Camera

Manufacturer :

onsemi

Product type :

Sensors, Transducers

Active Pixel Array :

1280H x 1024V

Frames per Second :

Operating Temperature :

0°C ~ 70°C

Package / Case :

48-CLCC

Packaging :

Tray

Pixel Size :

5.2µm x 5.2µm

Product Status :

Obsolete

Series :

Supplier Device Package :

CLCC-48 (14.22x14.22)

Type :

CMOS with Processor

Voltage - Supply :

3V ~ 3.6V
