FS32K146UAT0VMHR

ARM® Cortex®-M4F FS32K146UAT0VMHR combines the central processing unit (CPU), memory, input/output peripherals, and programmable input/output pins. Microcontrollers are designed to be embedded in electronic systems and act as the brains of these systems, executing specific tasks based on the programming instructions they receive. Due to its advantages such as small size, low power consumption, easy integration, and strong programmability, it is widely used.

Features

A FS32K146UAT0VMHR with a [Core Size] kernel can provide enhanced processing power and effectively address larger storage spaces. It is also equipped with advanced data converter function A/D 24x12b SAR; D/A1x8b, suitable for high-precision and fast conversion of complex analog signals to digital signals. FS32K146UAT0VMHR supports multiple connection options, including CANbus, FlexIO, I2C, LINbus, SPI, UART/USART. These interfaces enable seamless communication with various peripheral devices and external devices. Its EEPROM reaches 4K x 8, and the chip has 89 programmable input/output pins that can be configured and used as needed to meet various hardware control and signal processing needs.

NXP USA Inc. FS32K146UAT0VMHR has 128K x 8 memory space and 1MB (1M x 8) program memory, providing sufficient temporary storage space and storage requirements for large programs, supporting high-speed data reading, writing, and processing, as well as complex functions and controls.FS32K146UAT0VMHR IC uses Flash as the program storage medium, with a clock speed of up to 112MHz, which can achieve high-speed data processing and fast response, improving the real-time performance of the system. It utilizes Internal oscillators to support a stable clock source, ensuring the normal operation and synchronization of the chip, helping to achieve compact design and simplify external component requirements.

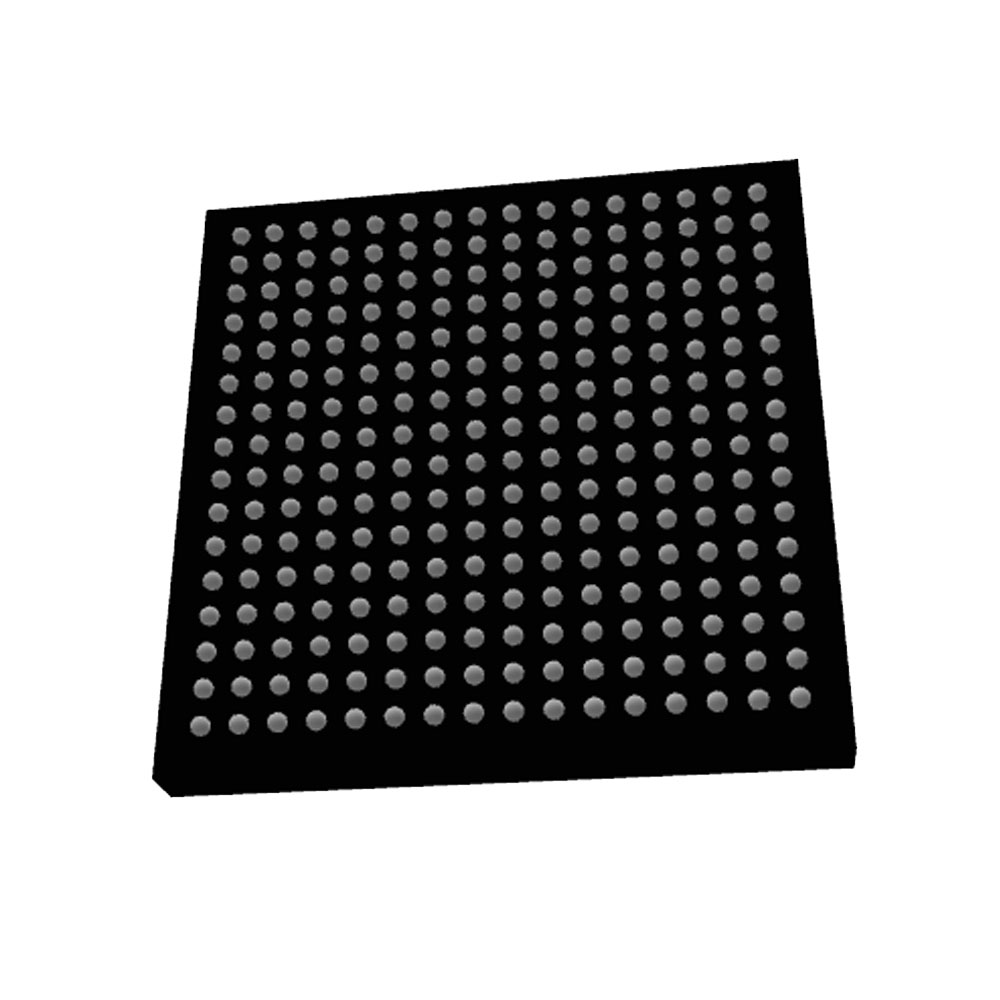

S32K FS32K146UAT0VMHR supports a variety of peripheral devices, including under POR, PWM, WDT and so on. These peripheral devices can expand the functionality of microcontrollers, improve system integration and reliability. Its 100-MAPBGA (11x11) packaging form has a small volume and good heat dissipation performance, making it convenient for integration and layout. In the wide voltage range of 2.7V ~ 5.5V, the flexibility of power supply configuration is ensured, and the operating temperature can be maintained at -40°C ~ 105°C (TA) while maintaining efficient operation. The wide operating temperature range ensures reliability in different environments. This microcontroller is packaged in 100-LFBGA and designed specifically to improve space efficiency and durability. The packaging is delivered in Tape & Reel (TR) form for easy handling and integration into the manufacturing process.

Applications

● Robots

● Smart Home

● Automotive Electronics

● Medical equipment

● Aerospace

● Intelligent instrument

● Embedded system

● Industrial automation
