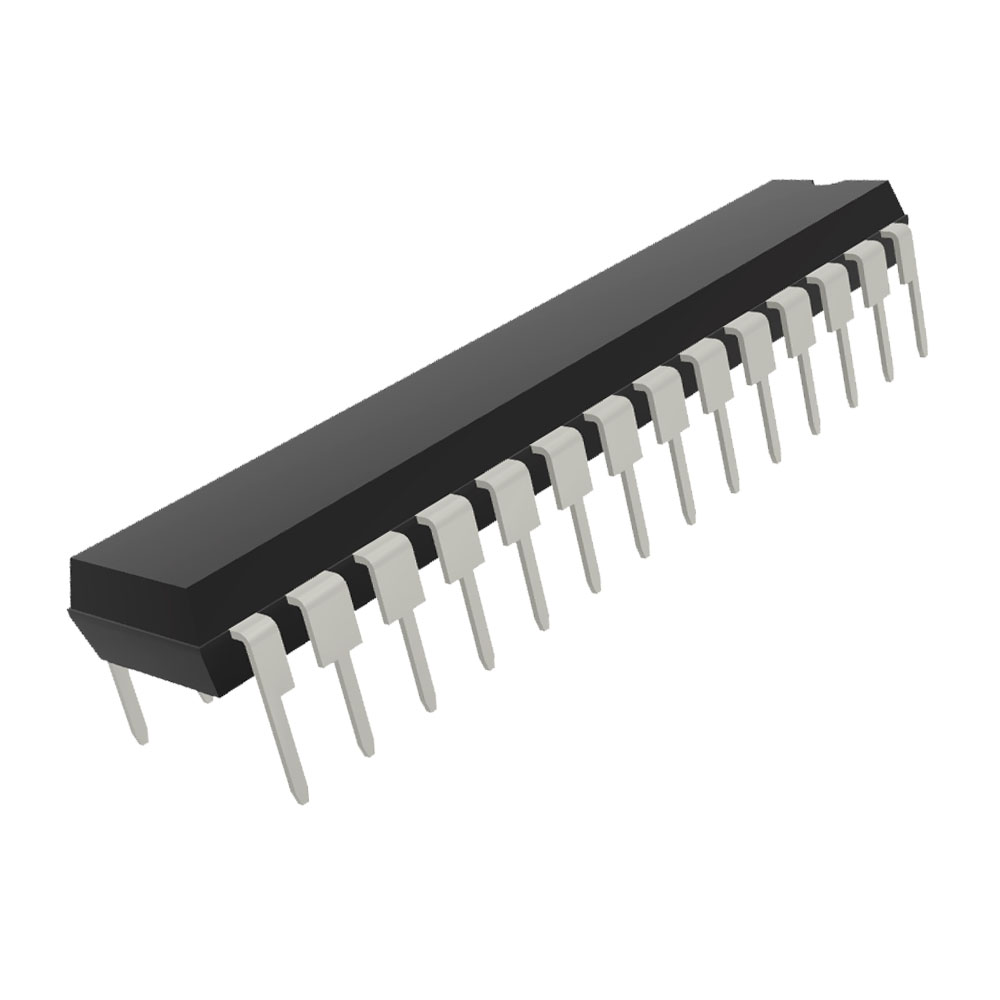

PIC16C745-I/SP

PIC PIC16C745-I/SP combines the central processing unit (CPU), memory, input/output peripherals, and programmable input/output pins. Microcontrollers are designed to be embedded in electronic systems and act as the brains of these systems, executing specific tasks based on the programming instructions they receive. Due to its advantages such as small size, low power consumption, easy integration, and strong programmability, it is widely used.

Features

A PIC16C745-I/SP with a [Core Size] kernel can provide enhanced processing power and effectively address larger storage spaces. It is also equipped with advanced data converter function A/D 5x8b, suitable for high-precision and fast conversion of complex analog signals to digital signals. PIC16C745-I/SP supports multiple connection options, including SCI, UART/USART, USB. These interfaces enable seamless communication with various peripheral devices and external devices. Its EEPROM reaches -, and the chip has 22 programmable input/output pins that can be configured and used as needed to meet various hardware control and signal processing needs.

Microchip Technology PIC16C745-I/SP has 256 x 8 memory space and 14KB (8K x 14) program memory, providing sufficient temporary storage space and storage requirements for large programs, supporting high-speed data reading, writing, and processing, as well as complex functions and controls.PIC16C745-I/SP IC uses OTP as the program storage medium, with a clock speed of up to 24MHz, which can achieve high-speed data processing and fast response, improving the real-time performance of the system. It utilizes External oscillators to support a stable clock source, ensuring the normal operation and synchronization of the chip, helping to achieve compact design and simplify external component requirements.

PIC® 16C PIC16C745-I/SP supports a variety of peripheral devices, including under Brown-out Detect/Reset, POR, PWM, WDT and so on. These peripheral devices can expand the functionality of microcontrollers, improve system integration and reliability. Its 28-SPDIP packaging form has a small volume and good heat dissipation performance, making it convenient for integration and layout. In the wide voltage range of 4.35 V ~ 5.25 V, the flexibility of power supply configuration is ensured, and the operating temperature can be maintained at -40°C ~ 85°C (TA) while maintaining efficient operation. The wide operating temperature range ensures reliability in different environments. This microcontroller is packaged in 28-DIP (0.300", 7.62mm) and designed specifically to improve space efficiency and durability. The packaging is delivered in Tube form for easy handling and integration into the manufacturing process.

Applications

● Robots

● Smart Home

● Automotive Electronics

● Medical equipment

● Aerospace

● Intelligent instrument

● Embedded system

● Industrial automation
