IXYF40N450 Product Information

For shipping methods and delivery terms, please see Delivery Information. For component inspection, authenticity checks, and quality assurance, please see Quality Control.

Description

The IXYF40N450 is a high-voltage IGBT transistor designed for demanding power switching applications. With a collector-emitter breakdown voltage of 4500V and a continuous collector current rating of 32A at 110°C, the IXYF40N450 offers strong performance in industrial and energy systems. This device combines Littelfuse’s advanced XPT technology with an ISOPLUS i4-Pak package that provides electrical isolation and simplified mounting. By using the IXYF40N450, designers benefit from high power density, reduced gate drive requirements, and reliable operation in switch-mode power supplies, UPS systems, laser generators, and capacitor discharge circuits. Its low saturation voltage and high peak current capability make the IXYF40N450 suitable for efficient energy transfer and robust thermal performance in high-stress environments.

Features

Collector-emitter voltage rating: 4500V
Continuous collector current: 60A at 25°C, 32A at 110°C
Pulsed collector current up to 350A
Low V_CE(sat) of 3.9V at 40A, 25°C
Electrical isolation up to 4000V~
Power dissipation of 290W at 25°C
Operating junction temperature: -55°C to +150°C

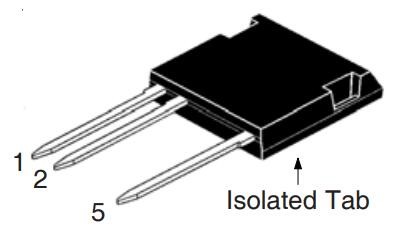

IXYF40N450 Pinout

IXYF40N450 pinout

The IXYF40N450 uses the ISOPLUS i4-Pak package with the following pin configuration:

Pin	Function
1	Gate
2	Emitter
3	Collector
Tab	Isolated

Applications

Switch-mode and resonant-mode power supplies
Uninterruptible power supplies (UPS)
Laser generation equipment
Capacitor discharge circuits
AC switching systems

Electrical Characteristics

Parameter	Conditions	Value
Collector-emitter breakdown voltage (BVCES)	IC = 250 μA, VGE = 0V	4500 V
Gate-emitter threshold voltage (VGE(th))	IC = 250 μA, VCE = VGE	3.0 – 5.0 V
Collector cut-off current (ICES)	VCE = VCES, VGE = 0V	25 μA (25°C), 100 μA (100°C)
Saturation voltage V_CE(sat)	IC = 40A, VGE = 15V	3.9 V at 25°C, 4.0 V at 125°C
Total gate charge (Qg)	IC = 40A, VCE = 1000V	170 nC
Input capacitance (Cies)	VGE = 0V, VCE = 25V, f = 1 MHz	3550 pF

Specifications

Product Category :

Transistors - IGBTs - Single

Manufacturer :

Littelfuse Inc.

Product type :

Discrete Semiconductor Products

Current - Collector (Ic) (Max) :

60 A

Current - Collector Pulsed (Icm) :

350 A

Gate Charge :

170 nC

Input Type :

Standard

Mounting Type :

Through Hole

Operating Temperature :

-55°C ~ 150°C (TJ)

Package / Case :

i4-Pac™-4, Isolated

Packaging :

Tube

Power - Max :

290 W

Product Status :

Active

Series :

XPT™

Supplier Device Package :

ISOPLUS i4-PAC™

Td (on/off) @ 25°C :

36ns/110ns

Test Condition :

960V, 40A, 2Ohm, 15V

Vce(on) (Max) @ Vge, Ic :

3.9V @ 15V, 40A

Voltage - Collector Emitter Breakdown (Max) :

4500 V
