0451002.MRL

Name: 0451002.MRL
Brand: Littelfuse Inc.
SKU: 0451002.MRL
Availability: InStock

Get $29 off orders over $999.

For orders over $2,999, get $160 off.

For orders over $6999, you will receive a $290 discount.

제조사 번호:: 0451002.MRL

제조사:: Littelfuse Inc.

제품 카테고리:: Fuses

설명:: FUSE BOARD MNT 2A 125VAC/VDC SMD

RoHs 상태:: 무연/ RoHS 준수

데이터시트:: 0451002.MRL Datasheet(PDF)

빠른 견적이 필요하신가요? BOM을 다음으로 보내주세요: [email protected]

낮은 MOQ로 비용 절감 • 소량 주문도 빠르게 출하

배송 옵션:

간편한 결제:

재고 수량: 9,881

MOQ: 1

지금 0451002.MRL 문의 양식을 제출하거나 [email protected]으로 이메일을 보내주세요. 12시간 이내에 가격과 리드타임으로 회신드립니다.

구매 안내

Dyethin은 경쟁력 있는 가격의 0451002.MRL 부품을 제공하며, 모든 부품이 100% 정품 및 신품임을 보장합니다. 제조사는 Littelfuse Inc.. 해당 제품의 견적을 받으려면, 0451002.MRL, 오른쪽의 빠른 문의 양식에 필요한 수량과 연락처를 입력해 주세요. 당사 영업팀이 12시간 이내에 가격과 납기로 회신드립니다.

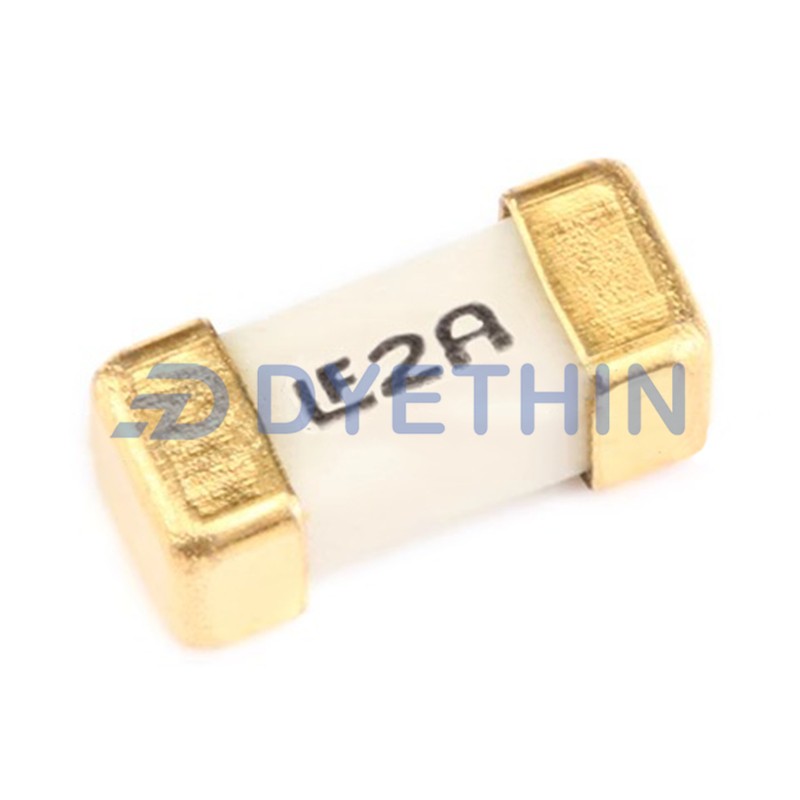

0451002.MRL is a Board Mount (Cartridge Style Excluded) fuse. When the current in the circuit exceeds the set safety value, this electrical component disconnects the circuit by melting to protect the electronic equipment and the personal safety of the user.

Features

0451002.MRL belongs to the NANO²® 451 series fuse, has a response time of Fast, and its rated current is 2A. When an abnormal current appears in the circuit, it can be blown in a short time and quickly cut off the circuit.Breaking Capacity @ Rated Voltage is as high as 50A, which has excellent breaking capacity and has passed CSA, PSE, UL safety certification, complying with international electrical safety standards.

The Melting I²t value of 0451002.MRL is 0.53, which is a fusing index indicating the amount of heat it can withstand before fusing. Its operating temperature range is between -55°C ~ 125°C, which can adapt to most electronic product projects. The Voltage Rating - AC and Voltage Rating - DC of this fuse are 125V,125V respectively, which can meet the protection requirements of different voltage levels.

Manufacturer Littelfuse Inc. uses 2-SMD, Square End Block standard packaging and Surface Mount installation method to facilitate layout design on the circuit board. The specific size is 0.240" L x 0.106" W x 0.106" H (6.10mm x 2.69mm x 2.69mm), and the Tape & Reel (TR) packaging method is used to improve the efficiency of mass production assembly.

Applications

● Motor control circuits

● Power supply devices

● Solar power equipment

● Household appliances

● Lighting systems

Below is a reference table of express delivery prices and timeframes:

Express Name	Prices within 0.5 kg	Statute of limitations (working days)
DHL	$28.00	3-5 days
FedEx	$30.00	4-6 days
EMS	$25.00	7-15 days
UPS	$30.00	3-6 days
TNT	$29.00	4-7 days

Price Note: The price is an example within 0.5Kg, the specific cost may be adjusted according to the actual weight and destination.
Timeliness Note: Timeliness is estimated time, excluding customs clearance delays or other uncontrollable factors.
Extra Charges: Remote surcharge may be incurred in some areas, subject to the quotation of the logistics company.

1. Can I buy the 0451002.MRL online from Dyethin site?

Yes, you can buy, purchase, or order online the 0451002.MRL directly through our website. We offer a secure checkout for fast and easy ordering.

2. Is the 0451002.MRL currently in stock and ready to ship?
Absolutely! The 0451002.MRL is in stock, available now, and ready to ship. We provide same-day shipping for all orders placed before our daily cutoff time.

3. Do you offer bulk pricing or wholesale discounts on the 0451002.MRL?
Yes, we offer attractive bulk pricing, wholesale, and volume discounts on the 0451002.MRL. For larger quantity orders, request an instant quote directly from our price list.

4. Do you provide 0451002.MRL components through trusted supply networks?
We supply 0451002.MRL voltage regulators from Littelfuse Inc. through trusted global sourcing channels, ensuring consistent quality and performance.

5. Can I find technical specifications or a datasheet for the 0451002.MRL?
Certainly! The complete technical specifications and datasheet for the 0451002.MRL are readily available and clearly listed on our product page.

6. How competitive is your pricing for the 0451002.MRL compared to other suppliers?
Our pricing on the 0451002.MRL is highly competitive, cost-effective, and consistently reviewed to ensure you get excellent value for your purchase.

7. Can I get fast delivery or bulk purchase discounts when buying 0451002.MRL components?
Yes, we offer flexible fast delivery, competitive bulk pricing, and attractive discounts for larger purchase quantities. Contact us directly for your bulk purchasing requirements.

사양

제품 카테고리 :

Fuses

제조사 :

Littelfuse Inc.

Product type :

Circuit Protection

Approvals :

CSA, PSE, UL

Breaking Capacity @ Rated Voltage :

50A

Color :

Current Rating :

Fuse Type :

Board Mount (Cartridge Style Excluded)

Melting I²t :

0.53

Mounting Type :

Surface Mount

Operating Temperature :

-55°C ~ 125°C

Package / Case :

2-SMD, Square End Block

Packaging :

Tape & Reel (TR)

Part Status :

Active

Response Time :

Fast

Series :

NANO²® 451

Size / Dimension :

0.240" L x 0.106" W x 0.106" H (6.10mm x 2.69mm x 2.69mm)

Voltage Rating - AC :

125V

Voltage Rating - DC :

125V
