IPT015N10N5ATMA1

Name: IPT015N10N5ATMA1
Brand: Infineon Technologies
SKU: IPT015N10N5ATMA1
Availability: InStock

Get $29 off orders over $999.

For orders over $2,999, get $160 off.

For orders over $6999, you will receive a $290 discount.

Manufacturer No:: IPT015N10N5ATMA1

Manufacturer:: Infineon Technologies

Product Category:: Transistors - FETs, MOSFETs - Single

Description:: MOSFET N-CH 100V 300A 8HSOF

RoHs Status:: Lead Free / RoHS Compliant

Datasheet:: IPT015N10N5ATMA1 Datasheet(PDF)

Get a quick quote? Send the BOM to [email protected]

Cut cost with low MOQ • Small orders shipped fast

Delivery Option:

Pay With Ease:

Inventory Quantity: 8,283

MOQ: 1

Submit the IPT015N10N5ATMA1 inquiry form now or email us at [email protected], and we'll respond with pricing and lead time within 12 hours.

Purchase Instructions

Dyethin offers competitively priced IPT015N10N5ATMA1 components, guaranteeing each component is 100% genuine and brand new, manufactured by Infineon Technologies. To obtain a quote for the IPT015N10N5ATMA1, please complete the quick enquiry form on the right, specifying your required quantity and contact details. Our sales team will respond within 12 hours with pricing and delivery times.

Overview

The IPT015N10N5ATMA1 is a 100V OptiMOS™ 5 N-channel power transistor from Infineon, engineered for high-efficiency switching and synchronous rectification. Packaged in the compact PG-HSOF-8 format, it offers extremely low R_DS(on) of just 1.5mΩ and an ultra-low gate charge of 169nC, making it ideal for demanding power conversion tasks in automotive, telecom, and server applications. With a continuous drain current rating of up to 353A and avalanche robustness, this MOSFET enables designers to build compact, thermally stable, and energy-efficient systems.

Features

Extremely low on-resistance R_DS(on): max. 1.5mΩ @ V_GS=10V
High drain current: 353A continuous, 1412A pulsed
Very low gate charge: 169nC typical at 10V
Optimized for high-frequency switching and synchronous rectification
Low output charge (Q_oss) and fast switching performance
Robust avalanche energy handling: 775mJ
Qualified according to JEDEC standards, RoHS and halogen-free compliant

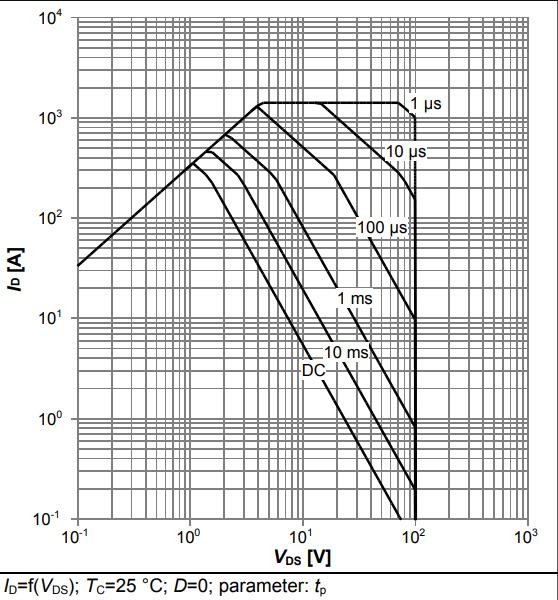

Graphical Analysis: Safe Operating Area

Safe Operating Area provides a critical insight into the drain current versus drain-source voltage under varying pulse durations at 25°C. It highlights the device's ability to withstand high current surges across a wide range of conditions (1µs to DC), showcasing its thermal stability and ruggedness. Designers can use this SOA curve to determine the IPT015N10N5’s safe limits during switching transients, ensuring reliable operation in dynamic load environments.

Applications

Automotive DC-DC converters and powertrain inverters
Telecom server voltage regulation modules (VRMs)
Synchronous rectification in SMPS designs
Battery management systems and load switches
Solar inverters and motor drive applications

Below is a reference table of express delivery prices and timeframes:

Express Name	Prices within 0.5 kg	Statute of limitations (working days)
DHL	$28.00	3-5 days
FedEx	$30.00	4-6 days
EMS	$25.00	7-15 days
UPS	$30.00	3-6 days
TNT	$29.00	4-7 days

Price Note: The price is an example within 0.5Kg, the specific cost may be adjusted according to the actual weight and destination.
Timeliness Note: Timeliness is estimated time, excluding customs clearance delays or other uncontrollable factors.
Extra Charges: Remote surcharge may be incurred in some areas, subject to the quotation of the logistics company.

1. Can I buy the IPT015N10N5ATMA1 online from Dyethin site?

Yes, you can buy, purchase, or order online the IPT015N10N5ATMA1 directly through our website. We offer a secure checkout for fast and easy ordering.

2. Is the IPT015N10N5ATMA1 currently in stock and ready to ship?
Absolutely! The IPT015N10N5ATMA1 is in stock, available now, and ready to ship. We provide same-day shipping for all orders placed before our daily cutoff time.

3. Do you offer bulk pricing or wholesale discounts on the IPT015N10N5ATMA1?
Yes, we offer attractive bulk pricing, wholesale, and volume discounts on the IPT015N10N5ATMA1. For larger quantity orders, request an instant quote directly from our price list.

4. Do you provide IPT015N10N5ATMA1 components through trusted supply networks?
We supply IPT015N10N5ATMA1 voltage regulators from Infineon Technologies through trusted global sourcing channels, ensuring consistent quality and performance.

5. Can I find technical specifications or a datasheet for the IPT015N10N5ATMA1?
Certainly! The complete technical specifications and datasheet for the IPT015N10N5ATMA1 are readily available and clearly listed on our product page.

6. How competitive is your pricing for the IPT015N10N5ATMA1 compared to other suppliers?
Our pricing on the IPT015N10N5ATMA1 is highly competitive, cost-effective, and consistently reviewed to ensure you get excellent value for your purchase.

7. Can I get fast delivery or bulk purchase discounts when buying IPT015N10N5ATMA1 components?
Yes, we offer flexible fast delivery, competitive bulk pricing, and attractive discounts for larger purchase quantities. Contact us directly for your bulk purchasing requirements.

Specifications

Product Category :

Transistors - FETs, MOSFETs - Single

Manufacturer :

Infineon Technologies

Product type :

Discrete Semiconductor Products

Current - Continuous Drain (Id) @ 25°C :

300A (Tc)

Drain to Source Voltage (Vdss) :

100V

Drive Voltage (Max Rds On, Min Rds On) :

6V, 10V

FET Feature :

FET Type :

N-Channel

Gate Charge (Qg) (Max) @ Vgs :

211nC @ 10V

Input Capacitance (Ciss) (Max) @ Vds :

16000pF @ 50V

Mounting Type :

Surface Mount

Operating Temperature :

-55°C ~ 175°C (TJ)

Package / Case :

8-PowerSFN

Packaging :

Tape & Reel (TR)

Part Status :

Active

Power Dissipation (Max) :

375W (Tc)

Rds On (Max) @ Id, Vgs :

1.5 mOhm @ 150A, 10V

Series :

OptiMOS™

Supplier Device Package :

PG-HSOF-8-1

Technology :

MOSFET (Metal Oxide)

Vgs (Max) :

±20V

Vgs(th) (Max) @ Id :

3.8V @ 250µA
