XCZU3EG-1SFVA625E

XCZU3EG-1SFVA625E includes central processing unit, graphics processor, video codec, display controller, bus controller, memory subsystem, audio processor, input/output subsystem, and various high-speed analog interfaces. These functional modules are integrated onto it to complete complex electronic system functions. In the application of smart devices, Zynq® UltraScale+™ MPSoC EG XCZU3EG-1SFVA625E is the core component that realizes various intelligent functions.

Features

XCZU3EG-1SFVA625E has a core processor with Quad ARM® Cortex®-A53 MPCore™ with CoreSight™, Dual ARM®Cortex™-R5 with CoreSight™ high-performance and low-power characteristics, which can provide powerful computing and control capabilities, and is paired with MCU, FPGA Architecture to achieve highly flexible and customizable system design. It provides various connectivity interfaces, including CAN, EBI/EMI, Ethernet, I²C, MMC/SD/SDIO, SPI, UART/USART, USB OTG, making it easy to transfer and control data with other peripheral devices such as DMA, WDT. It can also achieve high-speed computing capabilities at 600MHz, 1.5GHz running speed.

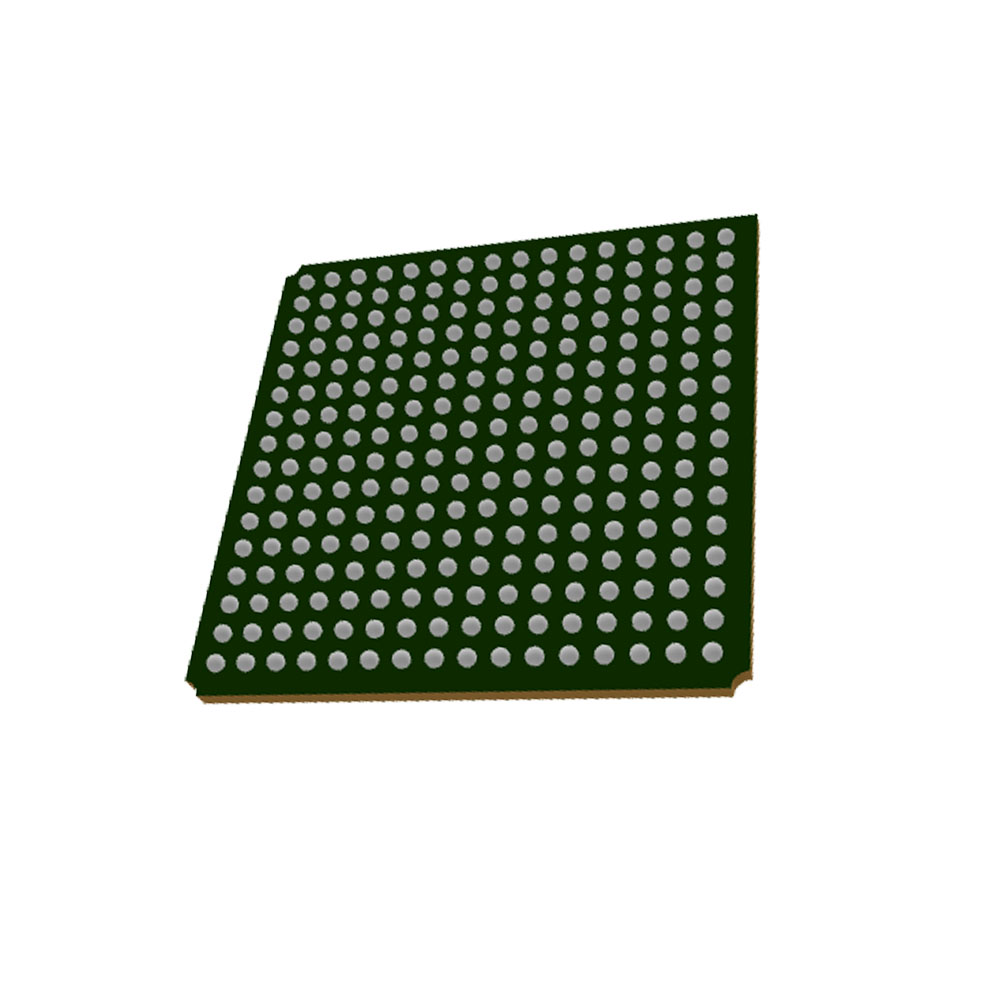

The IC XCZU3EG-1SFVA625E is equipped with - flash memory and 256Kb, which can be used to store program code, data, and configuration information, achieving high-speed data processing capabilities. Xilinx Inc. XCZU3EG-1SFVA625E adopts the 625-FCBGA (21x21) packaging form, which has a small volume and good heat dissipation performance, making it easy to integrate and apply on different electronic products. The operating temperature range of this IC is 0°C ~ 100°C (TJ), and its wide temperature range can adapt to various environments. Its main attributes include Zynq®UltraScale+™ FPGA, 154K+ Logic Cells being able to achieve high levels of logical functionality and customized design.

Xilinx Inc. manufacturers use the 625-BFBGA, FCBGA production process to manufacture XCZU3EG-1SFVA625E, and also provide Tray packaging for easy bulk procurement and use.

Applications

● Smartphones

The core component of a smartphone, responsible for handling various tasks such as voice calls, data transmission, graphic display, audio playback, etc.

● Wearable devices

Wearable devices such as smartwatches and health monitors rely on SoC chips to achieve various functions, such as motion tracking, health monitoring, and message notifications.

● Security monitoring

Security monitoring equipment such as cameras, video recorders, etc., achieve real-time video processing and data storage.

● Medical equipment

Monitor, ultrasound equipment, blood analyzer, etc. for high-speed data processing and real-time analysis.
