74LCX244BQX

74LCX244BQX, also known as a logic gate or logic circuit, is an electronic component used to implement the logic functions of digital circuits and perform logical operations on digital signals. This IC constitutes the basic building block of digital circuits and is crucial for the processing and operation of binary data in electronic systems.

Features

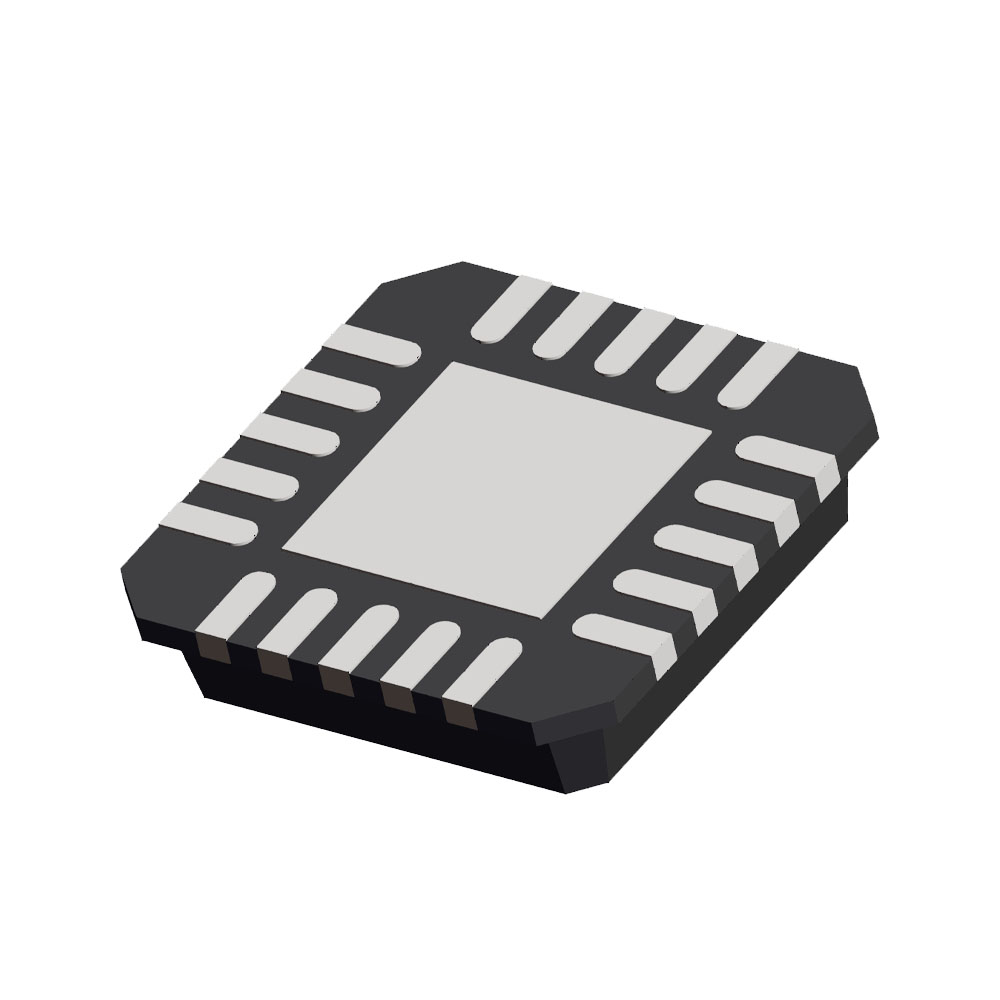

The Buffer, Non-Inverting type logic IC 74LCX244BQX Current Output High, Low are 24mA, 24mA, ensuring the stability of the chip. The elements of the IC have 4 bit resolution and contain 2 independent components, greatly improving computational accuracy and multi-channel application capabilities. 74LCX244BQX adopts the 20-WFQFN Exposed Pad package, which has the characteristics of small size and fast heat dissipation. It operates under the 2 V ~ 3.6 V power supply voltage, and the temperature is always maintained at the -40°C ~ 85°C (TA), greatly improving its performance and service life. It belongs to the Push-Pull output type.

ON Semiconductor 74LCX244BQX adopts 20-DQFN (2.5x4.5) Surface Mount packaging technology and Tape & Reel (TR) standard packaging, which greatly improves batch application efficiency and facilitates warehouse storage and storage.

Applications

● In car electronics

The functions of steering wheel control, air conditioning control, audio control, etc. all rely on logic chips.

● Game console

Provide complex game logic and graphics rendering capabilities for gaming consoles

● Intelligent environmental monitoring

Monitor indoor temperature, humidity, air quality and other parameters, use logic chips, and automatically adjust the working status of air conditioning, air purifiers and other equipment according to user needs to maintain the comfort of the indoor environment.

● Drug delivery system

Used to achieve intelligent control of drug delivery systems. And it can control the amount and frequency of drug release to avoid drug overdose or overtreatment.

● Diagnostic equipment

Used in various medical diagnostic equipment, such as biochemical analyzers, immune analyzers, blood analyzers, etc. Logic chips are responsible for processing data, controlling instrument operations, and calculating results to improve diagnostic accuracy and efficiency.
