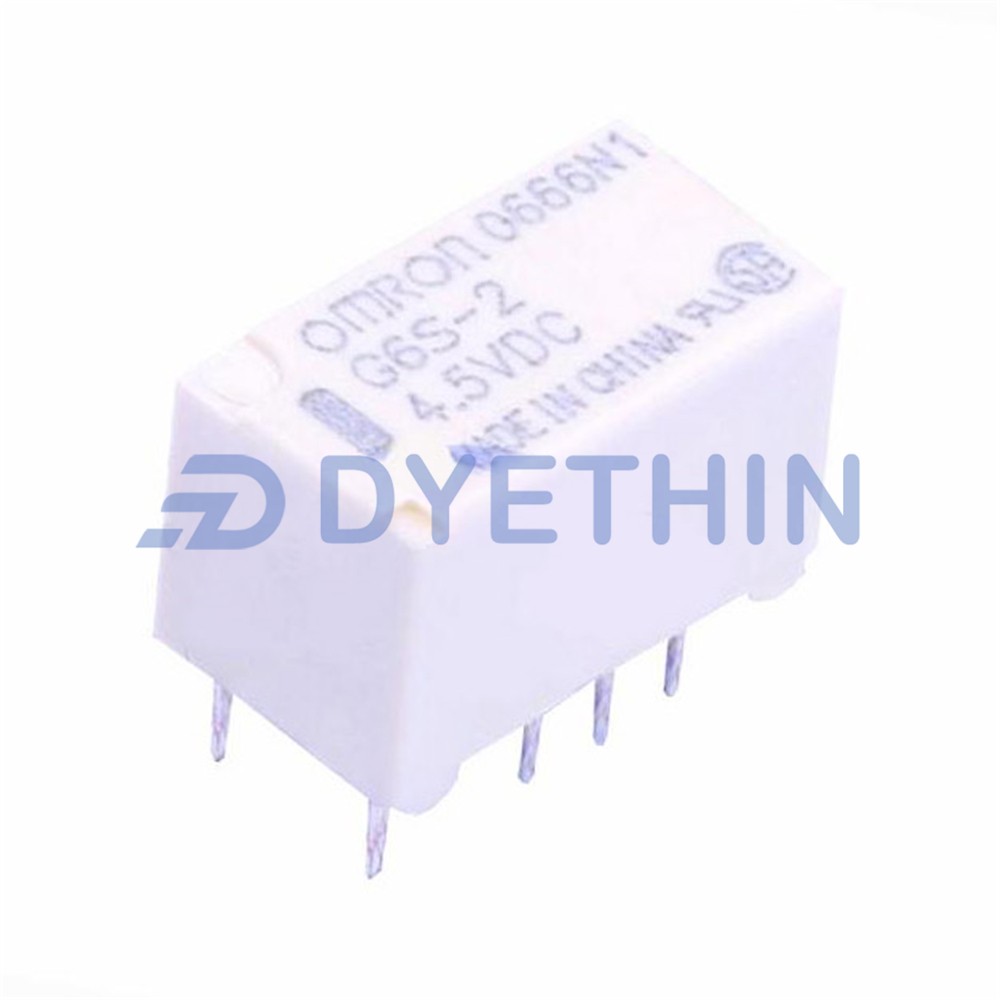

G6S-2 DC4.5

Name: G6S-2 DC4.5
Brand: Omron Electronics Inc-EMC Div
SKU: G6S-2-DC4.5
Availability: InStock

Get $29 off orders over $999.

For orders over $2,999, get $160 off.

For orders over $6999, you will receive a $290 discount.

Número do Fabricante:: G6S-2 DC4.5

Fabricante:: Omron Electronics Inc-EMC Div

Categoria do Produto:: Signal Relays, Up to 2 Amps

Descrição:: Telecom Relays 2 A 4.5VDC

Status RoHS:: Livre de chumbo / Conforme RoHS

Datasheet:: G6S-2 DC4.5 Datasheet(PDF)

Quer uma cotação rápida? Envie a BOM para [email protected]

Reduza custo com baixo MOQ • Pedidos pequenos enviados rápido

Opção de entrega:

Pague com facilidade:

Quantidade em Estoque: 9,081

MOQ: 1

Envie agora o formulário de consulta G6S-2 DC4.5 ou mande e-mail para [email protected], e retornaremos com preço e lead time em até 12 horas.

Instruções de Compra

A Dyethin oferece preços competitivos G6S-2 DC4.5 em componentes, garantindo que cada componente seja 100% genuíno e novo, fabricado por Omron Electronics Inc-EMC Div. Para obter uma cotação para G6S-2 DC4.5, preencha o formulário rápido à direita, informando a quantidade necessária e seus dados de contato. Nossa equipe responderá em até 12 horas com preços e prazos de entrega.

G6S-2 DC4.5 is a power control component that utilizes physical effects such as electromagnetic induction to control the automatic on/off of a circuit, and its main function is to produce a physical effect to disconnect or turn on the output when the current or voltage input meets a set value.

Features

Relay G6S-2 DC4.5 belongs to Non Latching coil type, in the 4.5VDC input voltage operating environment, the normal current will not exceed 31.0mA, and the operating temperature is maintained between -40°C ~ 85°C.

The relay can carry a current of 2A and can switch at a maximum voltage of 250VAC, 220VDC - Max, the voltage must be above 3.38 VDC to activate the relay, and below 0.45 VDC when it needs to be turned off, both the activation and deactivation voltages refer to the coil voltage.

Omron Electronics Inc-EMC Div G6S-2 DC4.5 belongs to Non Latching, the Contact Form is DPDT (2 Form C), and it belongs to G6S. The Operate Time and Release Time are 4ms, 4ms, respectively. In order to facilitate testing and automated assembly, the manufacturer adopts the PC Pin Termination Style.

G6S-2 DC4.5 manufacturer Omron Electronics Inc-EMC Div uses Through Hole mounting type and Tube standard packaging, which brings convenience to mass production and storage.

Application

● Power protection equipment

● Signal control systems

● Alarms

● Electronic measuring instruments

● Remote monitoring equipment

Below is a reference table of express delivery prices and timeframes:

Express Name	Prices within 0.5 kg	Statute of limitations (working days)
DHL	$28.00	3-5 days
FedEx	$30.00	4-6 days
EMS	$25.00	7-15 days
UPS	$30.00	3-6 days
TNT	$29.00	4-7 days

Price Note: The price is an example within 0.5Kg, the specific cost may be adjusted according to the actual weight and destination.
Timeliness Note: Timeliness is estimated time, excluding customs clearance delays or other uncontrollable factors.
Extra Charges: Remote surcharge may be incurred in some areas, subject to the quotation of the logistics company.

1. Can I buy the G6S-2 DC4.5 online from Dyethin site?

Yes, you can buy, purchase, or order online the G6S-2 DC4.5 directly through our website. We offer a secure checkout for fast and easy ordering.

2. Is the G6S-2 DC4.5 currently in stock and ready to ship?
Absolutely! The G6S-2 DC4.5 is in stock, available now, and ready to ship. We provide same-day shipping for all orders placed before our daily cutoff time.

3. Do you offer bulk pricing or wholesale discounts on the G6S-2 DC4.5?
Yes, we offer attractive bulk pricing, wholesale, and volume discounts on the G6S-2 DC4.5. For larger quantity orders, request an instant quote directly from our price list.

4. Do you provide G6S-2 DC4.5 components through trusted supply networks?
We supply G6S-2 DC4.5 voltage regulators from Omron Electronics Inc-EMC Div through trusted global sourcing channels, ensuring consistent quality and performance.

5. Can I find technical specifications or a datasheet for the G6S-2 DC4.5?
Certainly! The complete technical specifications and datasheet for the G6S-2 DC4.5 are readily available and clearly listed on our product page.

6. How competitive is your pricing for the G6S-2 DC4.5 compared to other suppliers?
Our pricing on the G6S-2 DC4.5 is highly competitive, cost-effective, and consistently reviewed to ensure you get excellent value for your purchase.

7. Can I get fast delivery or bulk purchase discounts when buying G6S-2 DC4.5 components?
Yes, we offer flexible fast delivery, competitive bulk pricing, and attractive discounts for larger purchase quantities. Contact us directly for your bulk purchasing requirements.

Especificações

Categoria do Produto :

Signal Relays, Up to 2 Amps

Fabricante :

Omron Electronics Inc-EMC Div

Product type :

Relays

Coil Current :

31.0mA

Coil Type :

Non Latching

Coil Voltage :

4.5VDC

Contact Form :

DPDT (2 Form C)

Contact Rating (Current) :

Features :

Mounting Type :

Through Hole

Operate Time :

4ms

Operating Temperature :

-40°C ~ 85°C

Packaging :

Tube

Part Status :

Active

Relay Type :

Telecom

Release Time :

4ms

Series :

G6S

Switching Voltage :

250VAC, 220VDC - Max

Termination Style :

PC Pin

Turn Off Voltage (Min) :

0.45 VDC

Turn On Voltage (Max) :

3.38 VDC
