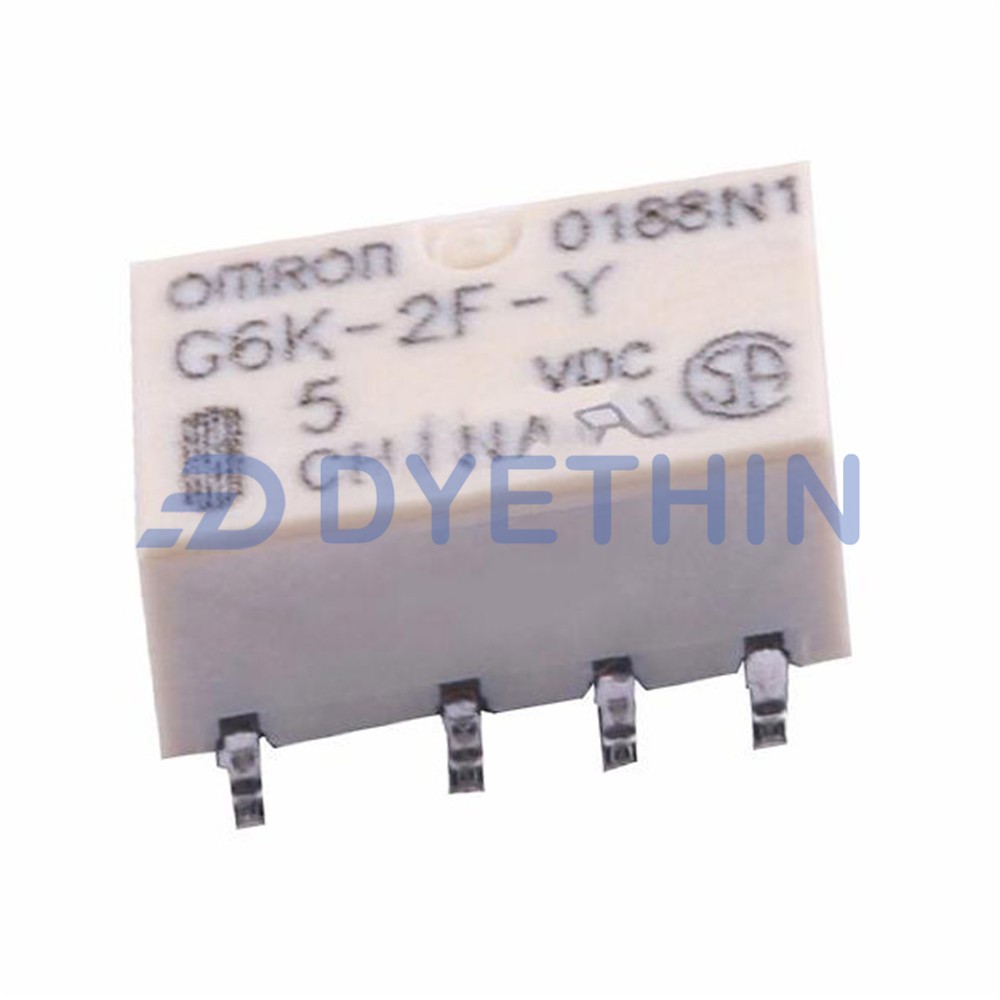

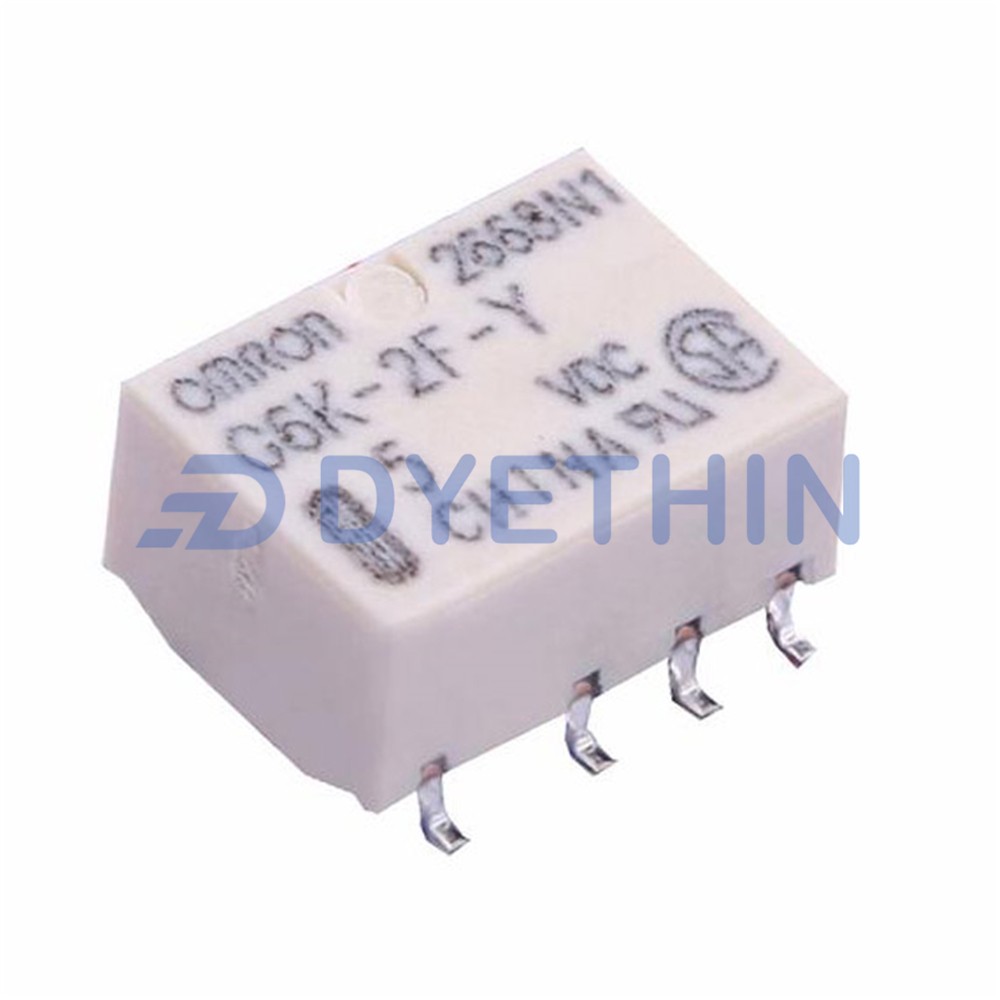

G6K-2F-Y DC5

Name: G6K-2F-Y DC5
Brand: Omron Electronics Inc-EMC Div
SKU: G6K-2F-Y-DC5
Availability: InStock

Get $29 off orders over $999.

For orders over $2,999, get $160 off.

For orders over $6999, you will receive a $290 discount.

제조사 번호:: G6K-2F-Y DC5

제조사:: Omron Electronics Inc-EMC Div

제품 카테고리:: Signal Relays, Up to 2 Amps

설명:: Telecom Relays 1 A 5VDC

RoHs 상태:: 무연/ RoHS 준수

데이터시트:: G6K-2F-Y DC5 Datasheet(PDF)

빠른 견적이 필요하신가요? BOM을 다음으로 보내주세요: [email protected]

낮은 MOQ로 비용 절감 • 소량 주문도 빠르게 출하

배송 옵션:

간편한 결제:

재고 수량: 11,230

MOQ: 1

지금 G6K-2F-Y DC5 문의 양식을 제출하거나 [email protected]으로 이메일을 보내주세요. 12시간 이내에 가격과 리드타임으로 회신드립니다.

구매 안내

Dyethin은 경쟁력 있는 가격의 G6K-2F-Y DC5 부품을 제공하며, 모든 부품이 100% 정품 및 신품임을 보장합니다. 제조사는 Omron Electronics Inc-EMC Div. 해당 제품의 견적을 받으려면, G6K-2F-Y DC5, 오른쪽의 빠른 문의 양식에 필요한 수량과 연락처를 입력해 주세요. 당사 영업팀이 12시간 이내에 가격과 납기로 회신드립니다.

G6K-2F-Y DC5 is a power control component that utilizes physical effects such as electromagnetic induction to control the automatic on/off of a circuit, and its main function is to produce a physical effect to disconnect or turn on the output when the current or voltage input meets a set value.

Features

Relay G6K-2F-Y DC5 belongs to Non Latching coil type, in the 5VDC input voltage operating environment, the normal current will not exceed 21.1mA, and the operating temperature is maintained between -40°C ~ 70°C.

The relay can carry a current of 1A and can switch at a maximum voltage of 125VAC, 60VDC - Max, the voltage must be above 4 VDC to activate the relay, and below 0.5 VDC when it needs to be turned off, both the activation and deactivation voltages refer to the coil voltage.

Omron Electronics Inc-EMC Div G6K-2F-Y DC5 belongs to Non Latching, the Contact Form is DPDT (2 Form C), and it belongs to G6K. The Operate Time and Release Time are 3ms, 3ms, respectively. In order to facilitate testing and automated assembly, the manufacturer adopts the Gull Wing Termination Style.

G6K-2F-Y DC5 manufacturer Omron Electronics Inc-EMC Div uses Surface Mount mounting type and Tube standard packaging, which brings convenience to mass production and storage.

Application

● Power protection equipment

● Signal control systems

● Alarms

● Electronic measuring instruments

● Remote monitoring equipment

Below is a reference table of express delivery prices and timeframes:

Express Name	Prices within 0.5 kg	Statute of limitations (working days)
DHL	$28.00	3-5 days
FedEx	$30.00	4-6 days
EMS	$25.00	7-15 days
UPS	$30.00	3-6 days
TNT	$29.00	4-7 days

Price Note: The price is an example within 0.5Kg, the specific cost may be adjusted according to the actual weight and destination.
Timeliness Note: Timeliness is estimated time, excluding customs clearance delays or other uncontrollable factors.
Extra Charges: Remote surcharge may be incurred in some areas, subject to the quotation of the logistics company.

1. Can I buy the G6K-2F-Y DC5 online from Dyethin site?

Yes, you can buy, purchase, or order online the G6K-2F-Y DC5 directly through our website. We offer a secure checkout for fast and easy ordering.

2. Is the G6K-2F-Y DC5 currently in stock and ready to ship?
Absolutely! The G6K-2F-Y DC5 is in stock, available now, and ready to ship. We provide same-day shipping for all orders placed before our daily cutoff time.

3. Do you offer bulk pricing or wholesale discounts on the G6K-2F-Y DC5?
Yes, we offer attractive bulk pricing, wholesale, and volume discounts on the G6K-2F-Y DC5. For larger quantity orders, request an instant quote directly from our price list.

4. Do you provide G6K-2F-Y DC5 components through trusted supply networks?
We supply G6K-2F-Y DC5 voltage regulators from Omron Electronics Inc-EMC Div through trusted global sourcing channels, ensuring consistent quality and performance.

5. Can I find technical specifications or a datasheet for the G6K-2F-Y DC5?
Certainly! The complete technical specifications and datasheet for the G6K-2F-Y DC5 are readily available and clearly listed on our product page.

6. How competitive is your pricing for the G6K-2F-Y DC5 compared to other suppliers?
Our pricing on the G6K-2F-Y DC5 is highly competitive, cost-effective, and consistently reviewed to ensure you get excellent value for your purchase.

7. Can I get fast delivery or bulk purchase discounts when buying G6K-2F-Y DC5 components?
Yes, we offer flexible fast delivery, competitive bulk pricing, and attractive discounts for larger purchase quantities. Contact us directly for your bulk purchasing requirements.

사양

제품 카테고리 :

Signal Relays, Up to 2 Amps

제조사 :

Omron Electronics Inc-EMC Div

Product type :

Relays

Coil Current :

21.1mA

Coil Type :

Non Latching

Coil Voltage :

5VDC

Contact Form :

DPDT (2 Form C)

Contact Rating (Current) :

Features :

Mounting Type :

Surface Mount

Operate Time :

3ms

Operating Temperature :

-40°C ~ 70°C

Packaging :

Tube

Part Status :

Active

Relay Type :

Telecom

Release Time :

3ms

Series :

G6K

Switching Voltage :

125VAC, 60VDC - Max

Termination Style :

Gull Wing

Turn Off Voltage (Min) :

0.5 VDC

Turn On Voltage (Max) :

4 VDC
