MK10DX128VFM5

ARM® Cortex®-M4 MK10DX128VFM5 combines the central processing unit (CPU), memory, input/output peripherals, and programmable input/output pins. Microcontrollers are designed to be embedded in electronic systems and act as the brains of these systems, executing specific tasks based on the programming instructions they receive. Due to its advantages such as small size, low power consumption, easy integration, and strong programmability, it is widely used.

Features

A MK10DX128VFM5 with a [Core Size] kernel can provide enhanced processing power and effectively address larger storage spaces. It is also equipped with advanced data converter function A/D 10x16b, suitable for high-precision and fast conversion of complex analog signals to digital signals. MK10DX128VFM5 supports multiple connection options, including I²C, IrDA, SPI, UART/USART. These interfaces enable seamless communication with various peripheral devices and external devices. Its EEPROM reaches 2K x 8, and the chip has 24 programmable input/output pins that can be configured and used as needed to meet various hardware control and signal processing needs.

NXP USA Inc. MK10DX128VFM5 has 16K x 8 memory space and 128KB (128K x 8) program memory, providing sufficient temporary storage space and storage requirements for large programs, supporting high-speed data reading, writing, and processing, as well as complex functions and controls.MK10DX128VFM5 IC uses Flash as the program storage medium, with a clock speed of up to 50MHz, which can achieve high-speed data processing and fast response, improving the real-time performance of the system. It utilizes Internal oscillators to support a stable clock source, ensuring the normal operation and synchronization of the chip, helping to achieve compact design and simplify external component requirements.

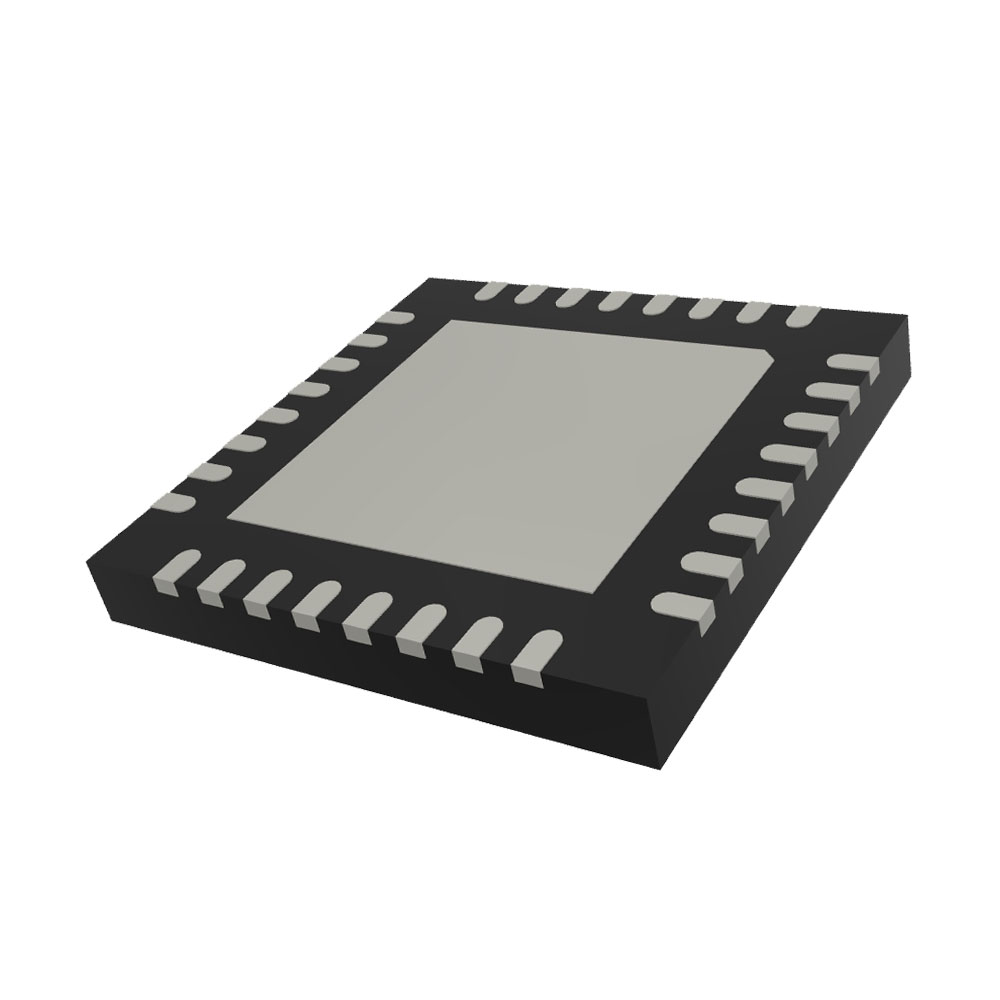

Kinetis K10 MK10DX128VFM5 supports a variety of peripheral devices, including under DMA, I²S, LVD, POR, PWM, WDT and so on. These peripheral devices can expand the functionality of microcontrollers, improve system integration and reliability. Its 32-QFN-EP (5x5) packaging form has a small volume and good heat dissipation performance, making it convenient for integration and layout. In the wide voltage range of 1.71 V ~ 3.6 V, the flexibility of power supply configuration is ensured, and the operating temperature can be maintained at -40°C ~ 105°C (TA) while maintaining efficient operation. The wide operating temperature range ensures reliability in different environments. This microcontroller is packaged in 32-VFQFN Exposed Pad and designed specifically to improve space efficiency and durability. The packaging is delivered in Tray form for easy handling and integration into the manufacturing process.

Applications

● Robots

● Smart Home

● Automotive Electronics

● Medical equipment

● Aerospace

● Intelligent instrument

● Embedded system

● Industrial automation
