PDMB300B12

Name: PDMB300B12
Brand: NIEC
SKU: PDMB300B12
Availability: InStock

Get $29 off orders over $999.

For orders over $2,999, get $160 off.

For orders over $6999, you will receive a $290 discount.

Manufacturer No:: PDMB300B12

Manufacturer:: NIEC

Package:: Module

Product Category:: Transistors - IGBTs - Modules

Description:: 1200 V, 300 A dual IGBT module with low 1.9 V V_CE(sat) and fast 0.4 µs turn-on.

RoHs Status:

Datasheet:: PDMB300B12 Datasheet(PDF)

Get a quick quote? Send the BOM to [email protected]

Cut cost with low MOQ • Small orders shipped fast

Delivery Option:

Pay With Ease:

Inventory Quantity: 11,250

MOQ: 1

Submit the PDMB300B12 inquiry form now or email us at [email protected], and we'll respond with pricing and lead time within 12 hours.

Purchase Instructions

Dyethin offers competitively priced PDMB300B12 components, guaranteeing each component is 100% genuine and brand new, manufactured by NIEC. To obtain a quote for the PDMB300B12, please complete the quick enquiry form on the right, specifying your required quantity and contact details. Our sales team will respond within 12 hours with pricing and delivery times.

Description

The PDMB300B12 dual IGBT module combines two 1200 V trench-field-stop devices and matched free-wheeling diodes in a low-inductance package. With a continuous collector current rating of 300 A and surge capability up to 600 A, PDMB300B12 delivers high power density for demanding inverter and chopper stages while keeping conduction loss low thanks to a typical V_CE(sat) of 1.9 V at 300 A. A 2500 Vrms isolation rating between terminals and base plate simplifies system insulation design, and the robust −40 °C – 150 °C junction temperature range supports reliable field operation.

Features

1200 V blocking voltage, PDMB300B12 handles 300 A DC / 600 A pulse current.
Low V_CE(sat) (typ. 1.9 V @ 300 A) minimizes conduction losses.
Fast switching: t_on ≈ 0.40 µs, t_off ≈ 0.80 µs (600 V, R_G = 1.3 Ω).
Integrated low-loss FRD with matched VF and 0.2 µs reverse-recovery time.
Thermal impedance R_thJC only 0.086 °C/W (IGBT) for efficient heat extraction.

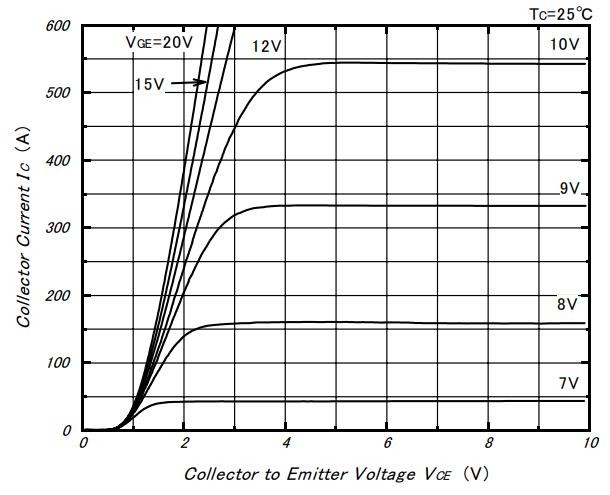

Figure Highlight – Output Characteristics

Applications

Industrial motor drives and servo amplifiers
Solar and wind inverter DC-link stages
UPS systems & high-power SMPS
Rail traction and EV fast-charging converters
Welding, induction-heating and plasma power supplies

Below is a reference table of express delivery prices and timeframes:

Express Name	Prices within 0.5 kg	Statute of limitations (working days)
DHL	$28.00	3-5 days
FedEx	$30.00	4-6 days
EMS	$25.00	7-15 days
UPS	$30.00	3-6 days
TNT	$29.00	4-7 days

Price Note: The price is an example within 0.5Kg, the specific cost may be adjusted according to the actual weight and destination.
Timeliness Note: Timeliness is estimated time, excluding customs clearance delays or other uncontrollable factors.
Extra Charges: Remote surcharge may be incurred in some areas, subject to the quotation of the logistics company.

1. Can I buy the PDMB300B12 online from Dyethin site?

Yes, you can buy, purchase, or order online the PDMB300B12 directly through our website. We offer a secure checkout for fast and easy ordering.

2. Is the PDMB300B12 currently in stock and ready to ship?
Absolutely! The PDMB300B12 is in stock, available now, and ready to ship. We provide same-day shipping for all orders placed before our daily cutoff time.

3. Do you offer bulk pricing or wholesale discounts on the PDMB300B12?
Yes, we offer attractive bulk pricing, wholesale, and volume discounts on the PDMB300B12. For larger quantity orders, request an instant quote directly from our price list.

4. Do you provide PDMB300B12 components through trusted supply networks?
We supply PDMB300B12 voltage regulators from NIEC through trusted global sourcing channels, ensuring consistent quality and performance.

5. Can I find technical specifications or a datasheet for the PDMB300B12?
Certainly! The complete technical specifications and datasheet for the PDMB300B12 are readily available and clearly listed on our product page.

6. How competitive is your pricing for the PDMB300B12 compared to other suppliers?
Our pricing on the PDMB300B12 is highly competitive, cost-effective, and consistently reviewed to ensure you get excellent value for your purchase.

7. Can I get fast delivery or bulk purchase discounts when buying PDMB300B12 components?
Yes, we offer flexible fast delivery, competitive bulk pricing, and attractive discounts for larger purchase quantities. Contact us directly for your bulk purchasing requirements.

Specifications

Product Category :

Transistors - IGBTs - Modules

Manufacturer :

NIEC

Product type :

Discrete Semiconductor Products

Collector Dissipation (PC) :

930W

Collector-Emitter Voltage (VCES) :

1200V

Continuous Collector Current (IC) :

300A

Gate-Emitter Voltage (VGE) :

±20V

Isolation Voltage :

2500 (AC, 1 min)Vrms

Operating Junction Temperature (Tj) :

−40 to +150°C

Package Type :

Dual IGBT Module

Pulsed Collector Current (ICP) :

600A

Thermal Resistance (RthJC) – IGBT :

0.086°C/W

Turn-Off Time (toff) :

0.8µs

Turn-On Time (ton) :

0.4µs

VCE(sat) @ 300 A, VGE=15V :

Typ. 1.9V
