M2S010-VFG400

M2S010-VFG400 includes central processing unit, graphics processor, video codec, display controller, bus controller, memory subsystem, audio processor, input/output subsystem, and various high-speed analog interfaces. These functional modules are integrated onto it to complete complex electronic system functions. In the application of smart devices, SmartFusion®2 M2S010-VFG400 is the core component that realizes various intelligent functions.

Features

M2S010-VFG400 has a core processor with ARM® Cortex®-M3 high-performance and low-power characteristics, which can provide powerful computing and control capabilities, and is paired with MCU, FPGA Architecture to achieve highly flexible and customizable system design. It provides various connectivity interfaces, including CAN, Ethernet, I²C, SPI, UART/USART, USB, making it easy to transfer and control data with other peripheral devices such as DDR, PCIe, SERDES. It can also achieve high-speed computing capabilities at 166MHz running speed.

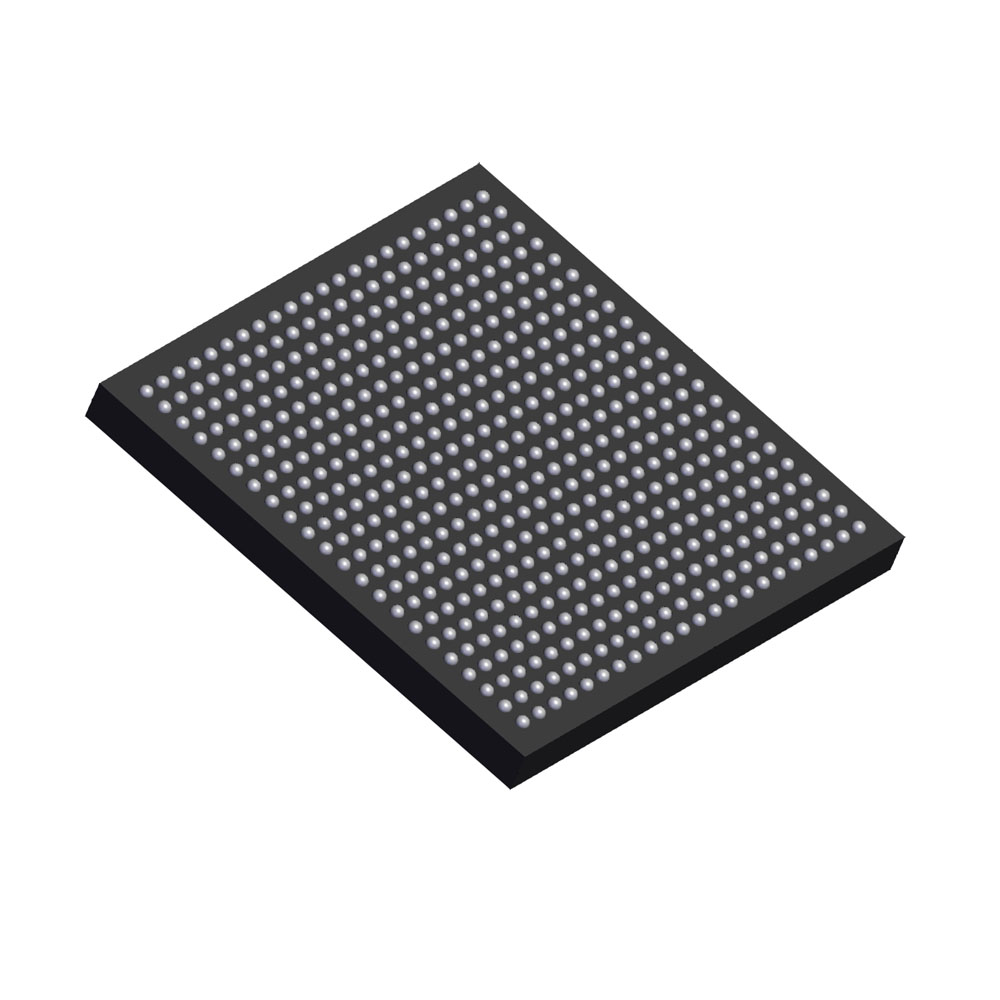

The IC M2S010-VFG400 is equipped with 256Kb flash memory and 64kb, which can be used to store program code, data, and configuration information, achieving high-speed data processing capabilities. Microsemi Corporation M2S010-VFG400 adopts the 400-VFBGA (17x17) packaging form, which has a small volume and good heat dissipation performance, making it easy to integrate and apply on different electronic products. The operating temperature range of this IC is 0°C ~ 85°C (TJ), and its wide temperature range can adapt to various environments. Its main attributes include FPGA - 10K Logic Modules being able to achieve high levels of logical functionality and customized design.

Microsemi Corporation manufacturers use the 400-LFBGA production process to manufacture M2S010-VFG400, and also provide Tray packaging for easy bulk procurement and use.

Applications

● Smartphones

The core component of a smartphone, responsible for handling various tasks such as voice calls, data transmission, graphic display, audio playback, etc.

● Wearable devices

Wearable devices such as smartwatches and health monitors rely on SoC chips to achieve various functions, such as motion tracking, health monitoring, and message notifications.

● Security monitoring

Security monitoring equipment such as cameras, video recorders, etc., achieve real-time video processing and data storage.

● Medical equipment

Monitor, ultrasound equipment, blood analyzer, etc. for high-speed data processing and real-time analysis.
