DS12C887A

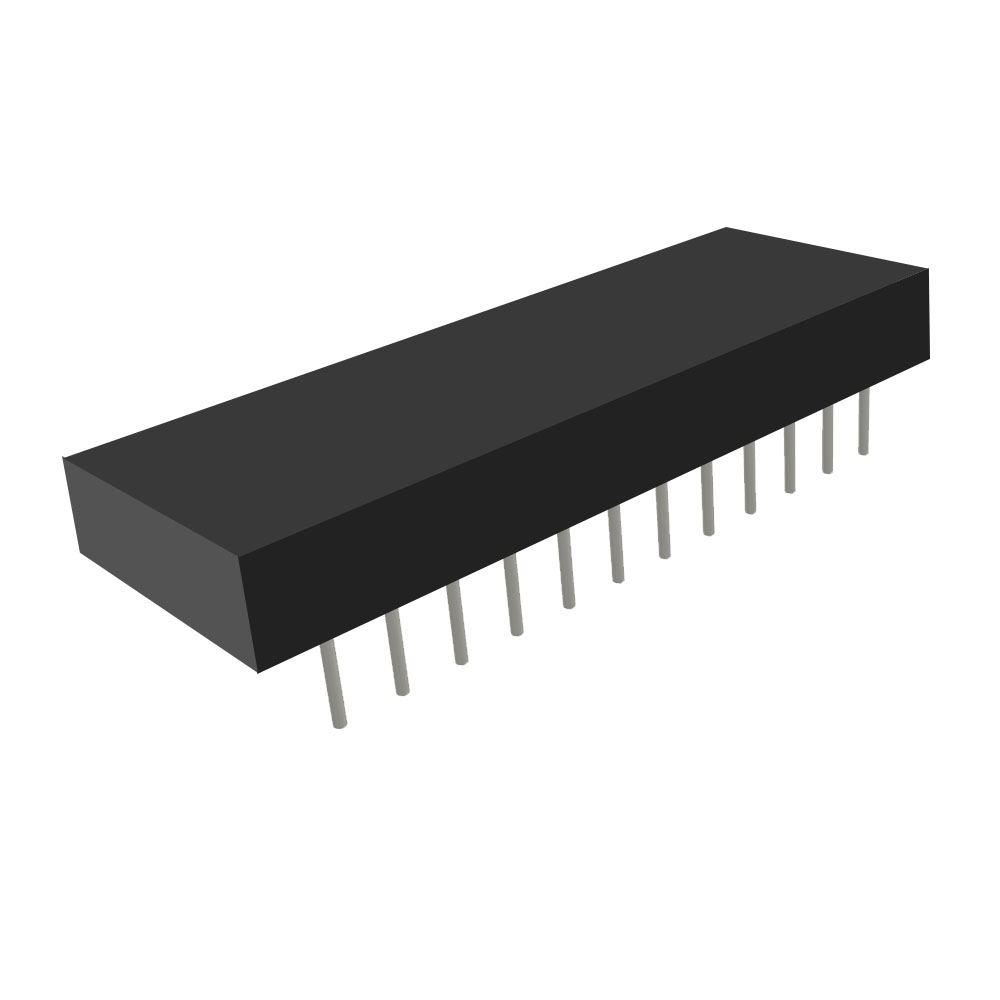

Real Time Clocks (RTCs) IC  DS12C887A is used to provide time information required by computer systems or other electronic devices, aiming to accurately track the current time and date. It usually uses quartz crystals as a frequency reference to generate a stable timing signal. DS12C887A typically includes clock/calendar circuits, counters, and a small amount of non-volatile memory used to store timing information. The output signal of DS12C887A can be time information such as seconds, minutes, hours, dates, etc., and is usually represented in binary or BCD (binary coded decimal) format.

Features

According to the DS12C887A Datasheet, its biggest feature is the ability to accurately calculate Alarm, Daylight Savings, Leap Year, NVSRAM, Square Wave Output and display the date in the standard format of YY-MM-DD-dd and the accurate time in the standard format of HH:MM:SS (12/24 hr). They can account for leap years and adjust for months with different numbers of days.At the ideal operating temperature of 0°C ~ 70°C, Current Timekeeping can support up to 15mA @ 4.5V ~ 5.5V, with an interface of Parallel and a universal memory size of 113B.

In circuit design, the voltage supplied to DS12C887A is generally between 4.5 V ~ 5.5 V, and Voltage - Supply, Battery to 2.5 V ~ 4 V. Maxim Integrated manufacturers provide 24-DIP Module (0.600", 15.24mm) packaging and advanced installation type Through Hole, which facilitates integration and application in various circuit boards that require precise time control and signal generation. The factory packaging is usually Tube, which is Lead Free and complies with RoHS standards. It belongs to the Clock/Calendar chip in the -.

DS12C887A has low power consumption characteristics, and some can be operated with small backup batteries to retain timing information during power outages. It includes an alarm function that allows them to generate interrupts or signals at specific times, making them very useful for time triggering.

Applications

● Temperature adjustment

Temperature compensation mechanisms to adjust for variations in the crystal oscillator's frequency due to temperature changes.

● Consumer Electronics

Consumer devices, such as household appliances, digital cameras, audio/video devices, etc., can use DS12C887A to display the current time and date.

● IoT Devices

The Internet of Things (IoT) devices are also commonly Clock/Calendar IC to maintain accurate time for data recording, event scheduling, and coordination between devices, making them more closely coordinated.

● Medical Devices

Medical devices typically use Clock/Calendar chip to add timestamps to data, record events, and synchronize processes. Enable data synchronization between automation equipment and control systems.
