LV 25-1200

Name: LV 25-1200
Brand: LEM USA Inc.
SKU: LV-25-1200
Availability: InStock

Get $29 off orders over $999.

For orders over $2,999, get $160 off.

For orders over $6999, you will receive a $290 discount.

Manufacturer No:: LV 25-1200

Manufacturer:: LEM USA Inc.

Product Category:: Specialized Sensors

Description:: Voltage Sensor Current Output

RoHs Status:

Datasheet:: LV 25-1200 Datasheet(PDF)

Get a quick quote? Send the BOM to [email protected]

Cut cost with low MOQ • Small orders shipped fast

Delivery Option:

Pay With Ease:

Inventory Quantity: 8,865

MOQ: 1

Submit the LV 25-1200 inquiry form now or email us at [email protected], and we'll respond with pricing and lead time within 12 hours.

Purchase Instructions

Dyethin offers competitively priced LV 25-1200 components, guaranteeing each component is 100% genuine and brand new, manufactured by LEM USA Inc.. To obtain a quote for the LV 25-1200, please complete the quick enquiry form on the right, specifying your required quantity and contact details. Our sales team will respond within 12 hours with pricing and delivery times.

Description

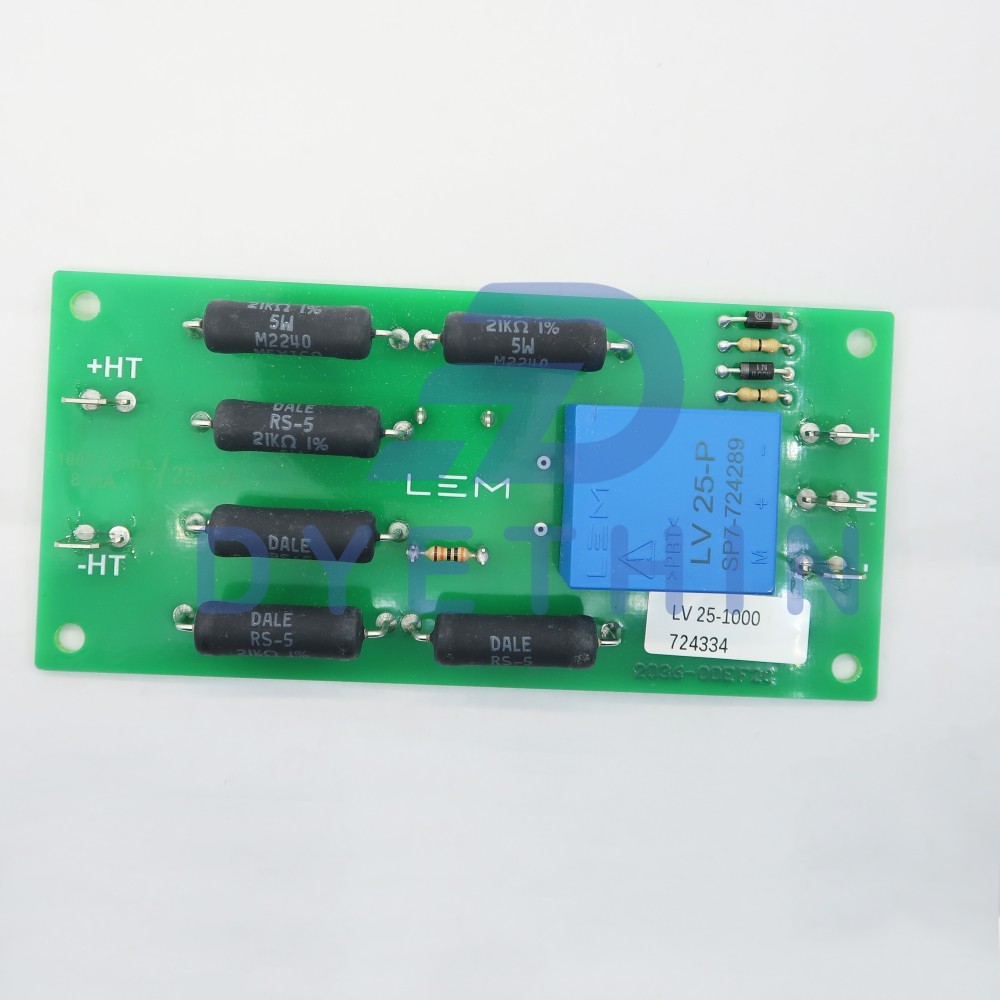

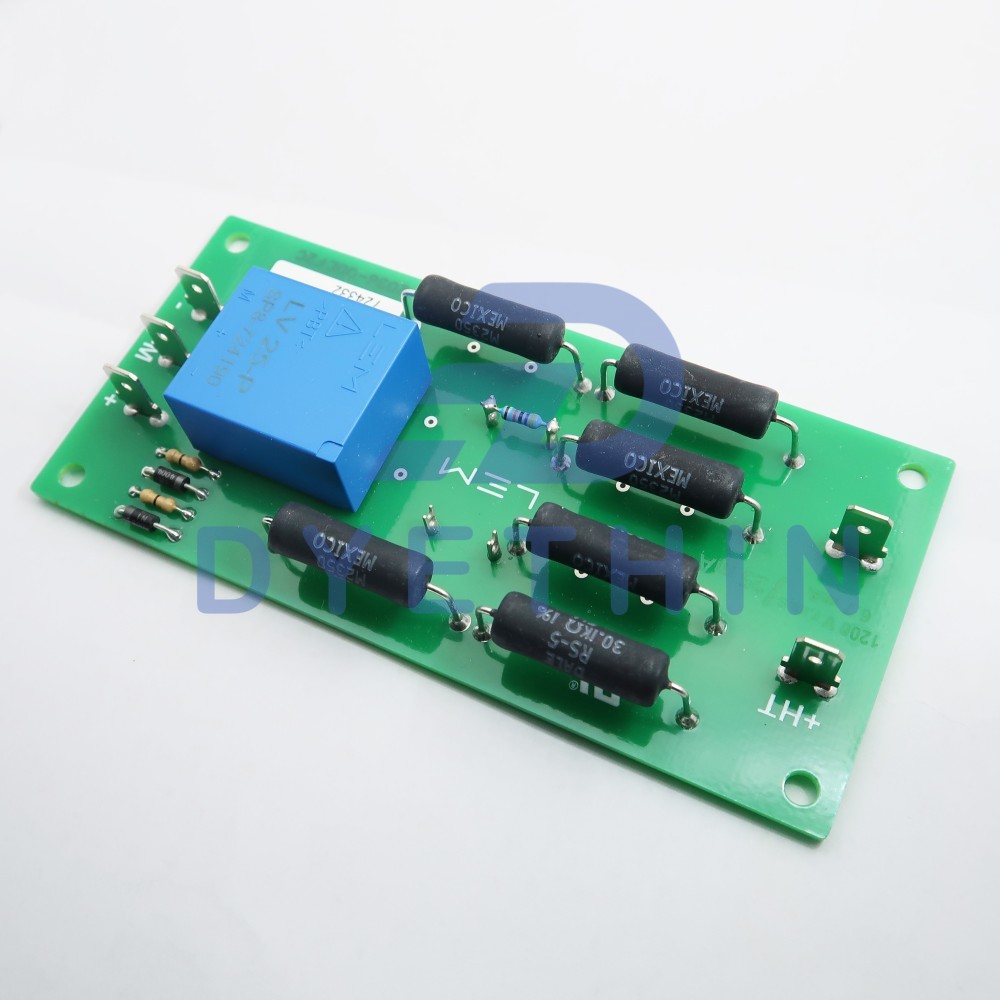

The LV 25-1200 is a high-precision voltage transducer developed by LEM for non-intrusive voltage monitoring in high-voltage AC/DC systems. Based on closed-loop Hall effect technology, this module ensures reliable voltage measurement up to ±1800 V with full galvanic isolation between primary and secondary circuits. Its compact design integrates both the primary resistor and sensing electronics, offering a robust solution for electrical isolation in demanding industrial and power conversion environments.

Features

Closed-loop Hall effect sensing for accurate voltage detection
Nominal voltage input of 1200 V RMS with ±1800 V measuring range
Galvanic isolation up to 4.1 kV (1 min AC test), 12 kV impulse withstand
High linearity (≤0.2%) and low offset drift over temperature
Reinforced insulation according to EN 50178 and UL 508
Low power consumption: nominal secondary current 25 mA
Supports ±12 to ±15 V supply operation

Applications

AC motor drives and inverter systems
DC motor controllers and static converters
Uninterruptible power supplies (UPS)
High-voltage welding equipment
Industrial voltage monitoring and diagnostics

Mechanical Characteristics

The LV 25-1200 is constructed in a flame-retardant insulating housing rated to UL 94-V0. The module mounts via four 4.2 mm holes using M4 screws and requires a dedicated holder to ensure proper mechanical stability. Both primary and secondary terminals are designed with Faston 6.3 × 0.8 mm connectors, simplifying integration into standard power busbars. The total mass of the device is approximately 60 grams, and general mechanical tolerances are maintained within ±0.3 mm. The transducer’s dimensions are optimized for PCB or chassis mounting with minimal space requirements.

Below is a reference table of express delivery prices and timeframes:

Express Name	Prices within 0.5 kg	Statute of limitations (working days)
DHL	$28.00	3-5 days
FedEx	$30.00	4-6 days
EMS	$25.00	7-15 days
UPS	$30.00	3-6 days
TNT	$29.00	4-7 days

Price Note: The price is an example within 0.5Kg, the specific cost may be adjusted according to the actual weight and destination.
Timeliness Note: Timeliness is estimated time, excluding customs clearance delays or other uncontrollable factors.
Extra Charges: Remote surcharge may be incurred in some areas, subject to the quotation of the logistics company.

1. Can I buy the LV 25-1200 online from Dyethin site?

Yes, you can buy, purchase, or order online the LV 25-1200 directly through our website. We offer a secure checkout for fast and easy ordering.

2. Is the LV 25-1200 currently in stock and ready to ship?
Absolutely! The LV 25-1200 is in stock, available now, and ready to ship. We provide same-day shipping for all orders placed before our daily cutoff time.

3. Do you offer bulk pricing or wholesale discounts on the LV 25-1200?
Yes, we offer attractive bulk pricing, wholesale, and volume discounts on the LV 25-1200. For larger quantity orders, request an instant quote directly from our price list.

4. Do you provide LV 25-1200 components through trusted supply networks?
We supply LV 25-1200 voltage regulators from LEM USA Inc. through trusted global sourcing channels, ensuring consistent quality and performance.

5. Can I find technical specifications or a datasheet for the LV 25-1200?
Certainly! The complete technical specifications and datasheet for the LV 25-1200 are readily available and clearly listed on our product page.

6. How competitive is your pricing for the LV 25-1200 compared to other suppliers?
Our pricing on the LV 25-1200 is highly competitive, cost-effective, and consistently reviewed to ensure you get excellent value for your purchase.

7. Can I get fast delivery or bulk purchase discounts when buying LV 25-1200 components?
Yes, we offer flexible fast delivery, competitive bulk pricing, and attractive discounts for larger purchase quantities. Contact us directly for your bulk purchasing requirements.

Specifications

Product Category :

Specialized Sensors

Manufacturer :

LEM USA Inc.

Product type :

Sensors, Transducers

Ambient Operating Temperature (TA) :

−25... +70 °C

Ambient Storage Temperature (TAst) :

−40... +85 °C

Clearance (dCI) :

13.8 mm

Comparative Tracking Index (CTI) (group IIIb) :

< 175

Connection of Primary :

Faston 6.3 × 0.8 mm

Connection of Secondary :

Faston 6.3 × 0.8 mm

Creepage Distance (dCp) :

13.8 mm

Current Consumption (IC) :

10 ( @ ±15 V ) + IS mA

Delay Time (tD90) to 90 % of the final output value for UPN step :

< 60 μs

General Tolerance :

±0.3 mm

Impulse Withstand Voltage (UNi) (1.2/50 μs) :

12 kV

Linearity Error (εL) :

< 0.2 %

Mass (m) :

60 g

Measurement Type :

DC, AC, pulsed... voltages with galvanic separation between primary and secondary circuits

Measuring Resistance (RM) :

See details below

Offset Current (IO) @ UP = 0, TA = 25 °C :

±0.15 mA

Primary Nominal RMS Current (IPN) :

6.7 mA

Primary Nominal RMS Voltage (UPN) :

1200 V

Primary Voltage Measuring Range (UPM) :

0... ±1800 V

Rated Insulation Voltage (EN 50178 - Basic insulation) :

1500 V

Rated Insulation Voltage (EN 50178 - Reinforced insulation) :

600 V

Rated Insulation Voltage (IEC 61010 - 1 - Reinforced insulation) :

600 V

Resistance of Primary (RP) @ TA = 25 °C :

180 kΩ

Resistance of Secondary Winding (RS) @ TA = 70 °C :

110 Ω

RMS Voltage for AC Insulation Test (Ud) (50 Hz, 1 min) :

4.1 kV

RM with ±12 V @ ±1200 V max :

30 - 200 Ω

RM with ±12 V @ ±1800 V max :

30 - 100 Ω

RM with ±15 V @ ±1200 V max :

100 - 320 Ω

RM with ±15 V @ ±1800 V max :

100 - 180 Ω

Secondary Nominal RMS Current (ISN) :

25 mA

Standards :

EN 50178: 1997, UL 508: 2010

Supply Voltage (UC) (±5 %) :

±12...15 V

Temperature Variation of IO (IOT) +25 °C... +70 °C :

±0.10 - ±0.35 mA

Temperature Variation of IO (IOT) −25 °C... +25 °C :

±0.10 - ±0.60 mA

Total Error (εtot) @ UPN, TA = 25 °C :

±0.8 %

Total Primary Power Loss (PP) :

8 W

Transducer Fastening :

4 holes ⌀ 4.2 mm, mounted with four M4 screws on an adapted holder

Turns Ratio (NP/NS) :

1200 V : 25 mA or 3700 : 1000
