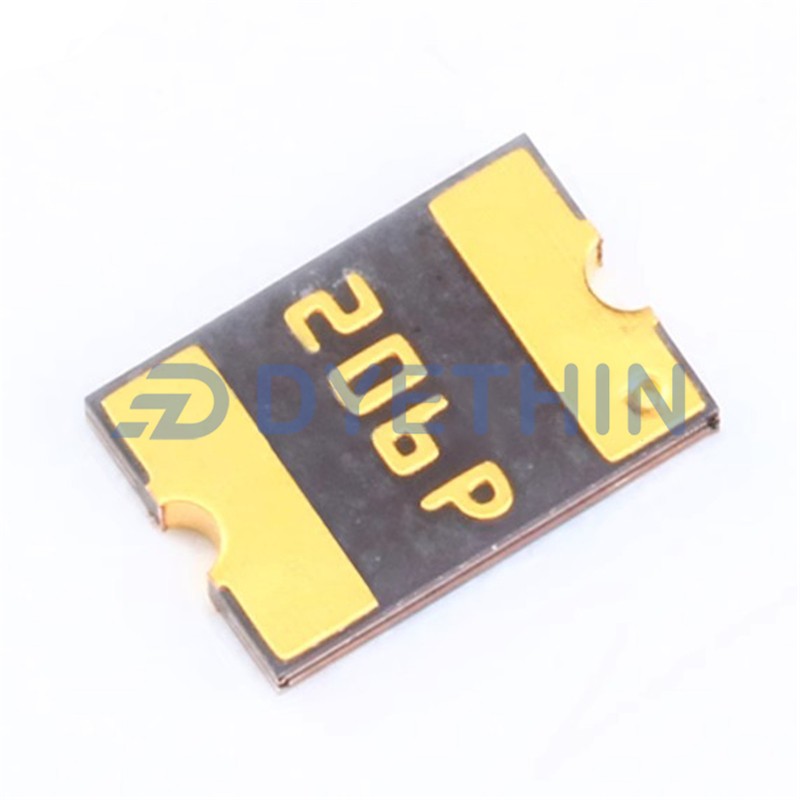

MF-MSMF200-2

Name: MF-MSMF200-2
Brand: Bourns Inc.
SKU: MF-MSMF200-2
Availability: InStock

Get $29 off orders over $999.

For orders over $2,999, get $160 off.

For orders over $6999, you will receive a $290 discount.

Codice produttore:: MF-MSMF200-2

Produttore:: Bourns Inc.

Categoria prodotto:: PTC Resettable Fuses

Descrizione:: PTC RESET FUSE 8V 2A 1812

Stato RoHS:: Senza piombo / Conforme RoHS

Datasheet:: MF-MSMF200-2 Datasheet(PDF)

Vuoi un preventivo rapido? Invia la BOM a [email protected]

Riduci costi con MOQ basso • Spedizioni rapide anche per piccoli ordini

Opzione di consegna:

Pagamenti facili:

Quantità a magazzino: 13,151

MOQ: 1

Invia ora il modulo di richiesta per MF-MSMF200-2 oppure scrivici a [email protected]: ti risponderemo con prezzo e lead time entro 12 ore.

Istruzioni di acquisto

Dyethin offre prezzi competitivi MF-MSMF200-2 per componenti, garantendo che ogni componente sia 100% originale e nuovo, prodotto da Bourns Inc.. Per ottenere un preventivo per MF-MSMF200-2, compila il modulo di richiesta rapida a destra, indicando quantità e contatti. Il nostro team vendite risponderà entro 12 ore con prezzo e tempi di consegna.

Multifuse®, MF-MSMF Series Fuses MF-MSMF200-2 utilizes the positive temperature coefficient property of the polymer material to automatically increase the resistance to limit the current when detecting overcurrent or overheating in the circuit, and restores the conduction state of the PTC Resettable Fuses automatically after the fault disappears.

Features

The Resistance - Initial (Ri) (Min) of MF-MSMF200-2 is 20 mOhms, which creates the conditions for efficient transmission under low resistance. When a circuit abnormality triggers the protection of this fuse, the resistance of MF-MSMF200-2 will increase to 80 mOhms, which now protects other parts from damage by the abnormal current. During normal operation, the operating temperature is normally maintained between -40°C ~ 85°C.

The maximum load current in normal working environment is 2A, if it exceeds the limit value of 40A, the fuse will trigger the protection mechanism to limit the current. Its trip current is 4A, which is the precursor of triggering protection, enhancing protection sensitivity and stability.

This fuse has a very fast response capability, when an abnormality occurs in the circuit, it can cut off the circuit within 3S, preventing the fault from worsening.Voltage - Max is 8V, and belongs to the Polymeric type of PTC Resettable Fuses.

Manufacturer Bourns Inc. uses 1812 (4532 Metric), Concave package and Surface Mount mounting type, which is good for heat dissipation and PCB layout. Specific dimensions are 0.179" L x 0.128" W (4.55mm x 3.24mm), thickness is 0.033" (0.85mm), using standard Tape & Reel (TR) packaging, easy to automate production and warehouse storage.

Vantage

● Fast response

● Automatic recovery

● High stability

● No polarity

Applications

● Battery Protection

● Home Appliances

● Automotive Electronics

● Medical Equipment

● Industrial Controls

Below is a reference table of express delivery prices and timeframes:

Express Name	Prices within 0.5 kg	Statute of limitations (working days)
DHL	$28.00	3-5 days
FedEx	$30.00	4-6 days
EMS	$25.00	7-15 days
UPS	$30.00	3-6 days
TNT	$29.00	4-7 days

Price Note: The price is an example within 0.5Kg, the specific cost may be adjusted according to the actual weight and destination.
Timeliness Note: Timeliness is estimated time, excluding customs clearance delays or other uncontrollable factors.
Extra Charges: Remote surcharge may be incurred in some areas, subject to the quotation of the logistics company.

1. Can I buy the MF-MSMF200-2 online from Dyethin site?

Yes, you can buy, purchase, or order online the MF-MSMF200-2 directly through our website. We offer a secure checkout for fast and easy ordering.

2. Is the MF-MSMF200-2 currently in stock and ready to ship?
Absolutely! The MF-MSMF200-2 is in stock, available now, and ready to ship. We provide same-day shipping for all orders placed before our daily cutoff time.

3. Do you offer bulk pricing or wholesale discounts on the MF-MSMF200-2?
Yes, we offer attractive bulk pricing, wholesale, and volume discounts on the MF-MSMF200-2. For larger quantity orders, request an instant quote directly from our price list.

4. Do you provide MF-MSMF200-2 components through trusted supply networks?
We supply MF-MSMF200-2 voltage regulators from Bourns Inc. through trusted global sourcing channels, ensuring consistent quality and performance.

5. Can I find technical specifications or a datasheet for the MF-MSMF200-2?
Certainly! The complete technical specifications and datasheet for the MF-MSMF200-2 are readily available and clearly listed on our product page.

6. How competitive is your pricing for the MF-MSMF200-2 compared to other suppliers?
Our pricing on the MF-MSMF200-2 is highly competitive, cost-effective, and consistently reviewed to ensure you get excellent value for your purchase.

7. Can I get fast delivery or bulk purchase discounts when buying MF-MSMF200-2 components?
Yes, we offer flexible fast delivery, competitive bulk pricing, and attractive discounts for larger purchase quantities. Contact us directly for your bulk purchasing requirements.

Specifiche

Categoria prodotto :

PTC Resettable Fuses

Produttore :

Bourns Inc.

Product type :

Circuit Protection

Current - Hold (Ih) (Max) :

Current - Max :

40A

Current - Trip (It) :

Height - Seated (Max) :

Lead Spacing :

Mounting Type :

Surface Mount

Operating Temperature :

-40°C ~ 85°C

Package / Case :

1812 (4532 Metric), Concave

Packaging :

Tape & Reel (TR)

Part Status :

Active

Ratings :

AEC-Q200

Resistance - 25°C (Typ) :

Resistance - Initial (Ri) (Min) :

20 mOhms

Resistance - Post Trip (R1) (Max) :

80 mOhms

Series :

Multifuse®, MF-MSMF

Size / Dimension :

0.179" L x 0.128" W (4.55mm x 3.24mm)

Thickness (Max) :

0.033" (0.85mm)

Time to Trip :

Type :

Polymeric

Voltage - Max :
