AD5314BRM

AD5314BRM IC is a device that converts digital signals into analog signals. It usually consists of digital registers, analog electronic switches, weight resistor networks, summation amplifiers, and reference power supplies. The main function is to obtain digital input data and generate corresponding continuous analog outputs. In applications where digital systems need to be connected to analog components or devices, this conversion is crucial.

Features

AD5314BRM belongs to String DAC and is paired with SPI, DSP data interface. It supports Voltage - Buffered and has 4 D/A converters. It operates under digital voltage 2.5 V ~ 5.5 V and operates at temperatures between -40°C ~ 105°C, which is a normal phenomenon. Differential Output is No and supports 10 digits.

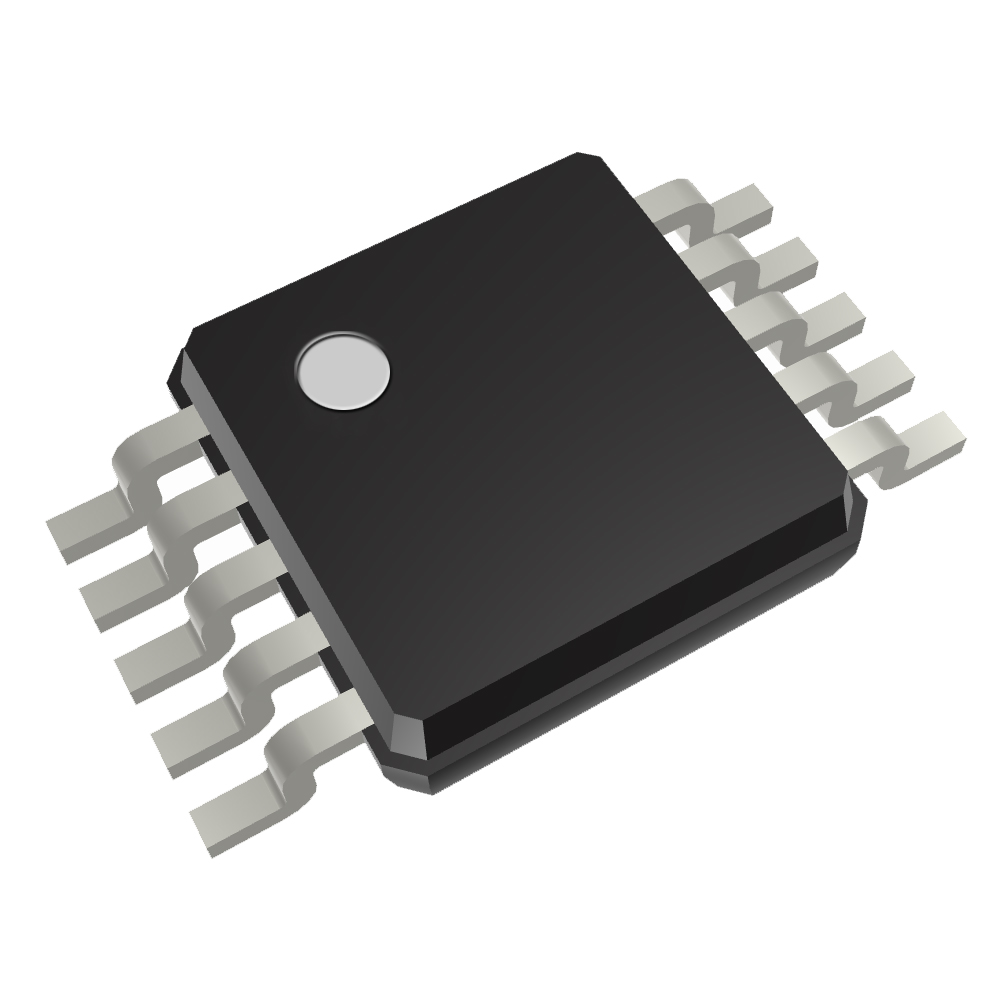

Analog Devices Inc. AD5314BRM is a type of - series that stands out among many products with a stable time of 9µs. It belongs to the External type and works best between analog voltages 2.5 V ~ 5.5 V, with a relatively long service life. Its INL/DNL (LSB) is ±0.5, ±0.05. It adopts 10-TFSOP, 10-MSOP (0.118", 3.00mm Width), which is very convenient to apply on various circuit boards. At the same time, it uses 10-MSOP package technology and Tube packaging, making it very suitable for large-scale SMT production and transportation preservation.

Applications

● Digital Potentiometer Emulation

DACs can be used to emulate digital potentiometers, providing digitally controlled variable resistances in circuits.

● Video processing

In the field of video processing, DAC chips can convert digital video signals into analog signals for display and transmission.

● Test measurement

In the field of testing and measurement, DAC chips can be used in various testing and measurement equipment, such as oscilloscopes, spectrum analyzers, signal generators, etc. DAC chips can convert digital signals into analog signals for testing and measurement purposes.

● Industrial control

In the field of industrial control, DAC chips can be used in various control systems and devices, such as motor control, automatic control systems, etc. DAC chips can convert digital control signals into analog signals for the purpose of driving and controlling devices.

● LED Drivers

In lighting applications, DACs can be used to control the intensity and color of LEDs in various lighting systems.
